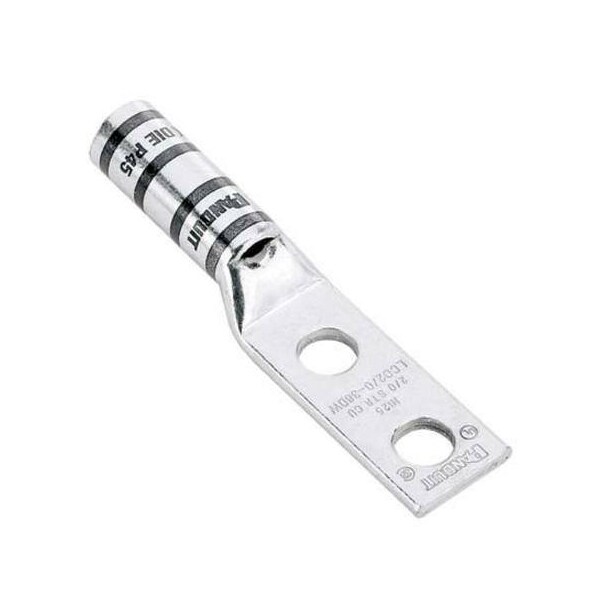

Conector de compresión de lug, 3/0 AWG.
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.96 in |
| Material | Tin-Plated Copper |
| Length | 4.87 in |
| Color Code | Orange |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Overall Length | 4.87 in |
| Features | Corrosion Resistant |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (mm) | 38.1 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (In.) | 1 to 2 |
| Overall Length (In.) | 4.87 |
| Stud Hole Size (mm) | 12.7 |
| UL Temperature Rating (°C) | 90 |
| Panduit Die Index Number | P50 |
| Copper Code Conductor Size (AWG) | 36,586 |
| Wire Strip Length (In.) | 1.56 |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Type | Standard |
| Tongue Width (mm) | 24.4 |
| Overall Length (mm) | 123.7 |
| Barrel Length (In.) | 1-1/2 |
| Wire Strip Length (mm) | 39.7 |
| Tongue Thickness (mm) | 3.3 |
| Burndy Die Index Number | 14 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (In.) | 0.96 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (In.) | 0.13 |
| Base Material | Copper |
| Stud Hole Spacing (mm) | 44.5 |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
