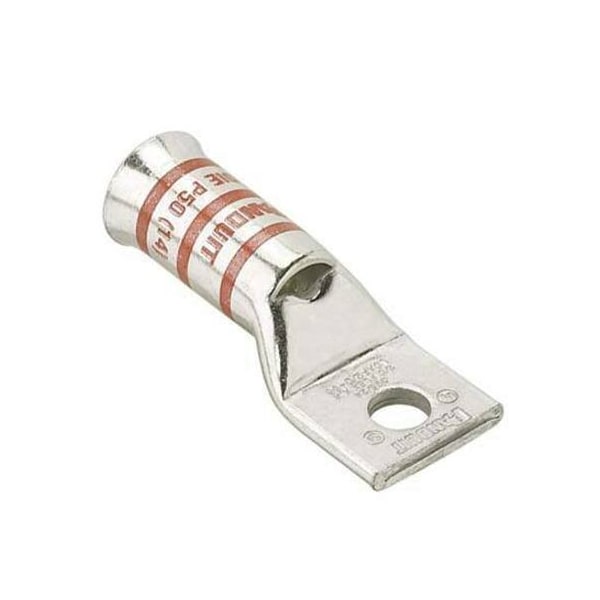

Conector de compresión para manguitos, 350 Kcmil
| Cable Size | 350 kcmil |
|---|---|
| Connector Type | Flared Barrel |
| Width | 1.54 in |
| Material | Tin-Plated Copper |
| Length | 3.65 in |
| Color Code | Blue |
| Item | Lug Compression Connector |
| Overall Length | 3.65 in |
| Features | Angled Connector, Corrosion Resistant |
| Tongue Thickness (mm) | 5.6 |
| Standards Met | UL Listed and CSA Certified, NEBS Level 3, ABS |
| Base Material | Copper |
| Tongue Type | Standard |
| Class M Copper Flex Conductor Size (kcmil) | 350 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (In.) | 1 to 2 |
| Stud Hole Size (mm) | 12.7 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (mm) | 92.7 |
| Barrel Type | Standard Barrel |
| Tongue Angle | Straight |
| DLO Copper Flex Conductor Size (kcmil) | 373.7 |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Tongue Width (mm) | 39.1 |
| Finish/Coating | Tin-Plated |
| Panduit Die Index Number | P76 |
| Tongue Width (In.) | 1.54 |
| Overall Length (In.) | 3.65 |
| Wire Strip Length (In.) | 1.9375 |
| Tongue Thickness (In.) | 0.22 |
| Barrel Length (mm) | 47 |
| Barrel Length (In.) | 1.85 |
| Product Type | Copper Compression Connectors - Lugs |
| Wire Strip Length (mm) | 49.2 |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
