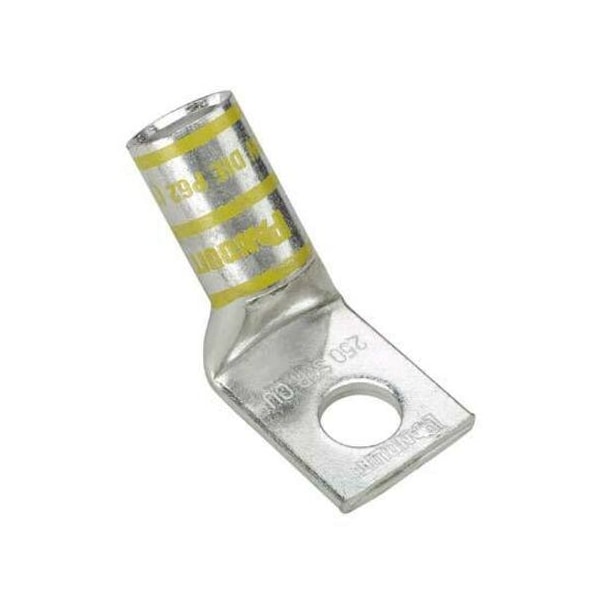

Conector de compresión para manguera, 4-3 AWG.
| Cable Size | 4 to 3 AWG STR, 2 AWG SOL |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.55 in |
| Material | Tin-Plated Copper |
| Length | 1.52 in |
| Color Code | Gray |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Overall Length | 1.52 in |
| Connection Material | Tin |
| Features | 45° Angled Connector, Corrosion Resistant |
| Tongue Thickness (In.) | 0.09 |
| Overall Length (mm) | 38.6 |
| Maximum Voltage (kV) | 35 |
| Copper Code Conductor Size (AWG) | 4 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Stud Hole Size (In.) | 45,062 |
| Tongue Width (In.) | 0.55 |
| Barrel Length (mm) | 20.6 |
| Stud Hole Size (mm) | 7.9 |
| Tongue Width (mm) | 14 |
| Panduit Die Index Number | P29 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Wire Strip Length (mm) | 22.2 |
| Overall Length (In.) | 1.52 |
| UL Temperature Rating (°C) | 90 |
| Burndy Die Index Number | 8 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (mm) | 2.3 |
| Tongue Angle | 45° |
| Tongue Type | Standard |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Length (In.) | 0.81 |
| Base Material | Copper |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
