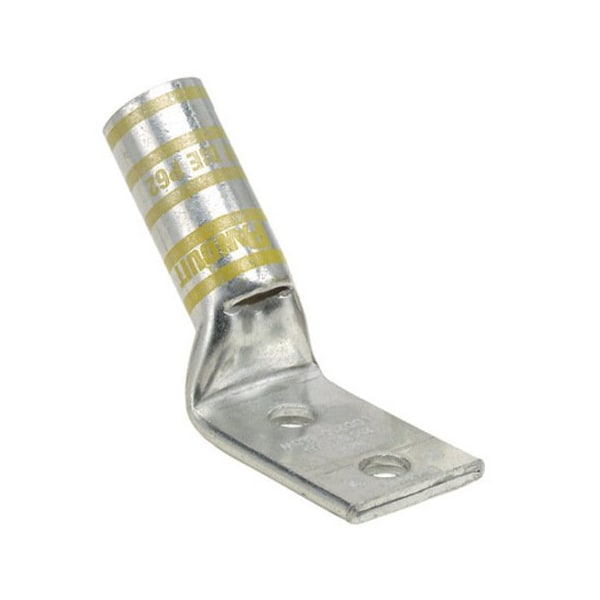

Conector de compresión de manguito, 4-3 AWG.
| Cable Size | 4 to 3 AWG STR, 2 AWG SOL |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.55 in |
| Material | Tin-Plated Copper |
| Length | 2.2 in |
| Color Code | Gray |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Overall Length | 2.2 in |
| Connection Material | Tin |
| Features | 45° Angled Connector, Corrosion Resistant |
| Tongue Type | Standard |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Wire Strip Length (In.) | 1.125 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (In.) | 44,930 |
| Finish/Coating | Tin-Plated |
| Stud Hole Spacing (In.) | 0.63 |
| Tongue Thickness (In.) | 0.09 |
| Maximum Voltage (kV) | 35 |
| Tongue Angle | 45° |
| Wire Strip Length (mm) | 28.6 |
| Tongue Width (In.) | 0.55 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Burndy Die Index Number | 8 |
| Copper Code Conductor Size (AWG) | 4 |
| Barrel Length (In.) | 1.05 |
| Overall Length (In.) | 2.2 |
| T & B Die Index Number | 29 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 16 |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (mm) | 26.7 |
| Panduit Die Index Number | P29 |
| Overall Length (mm) | 55.9 |
| Tongue Thickness (mm) | 2.3 |
| Base Material | Copper |
| Tongue Width (mm) | 14 |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
