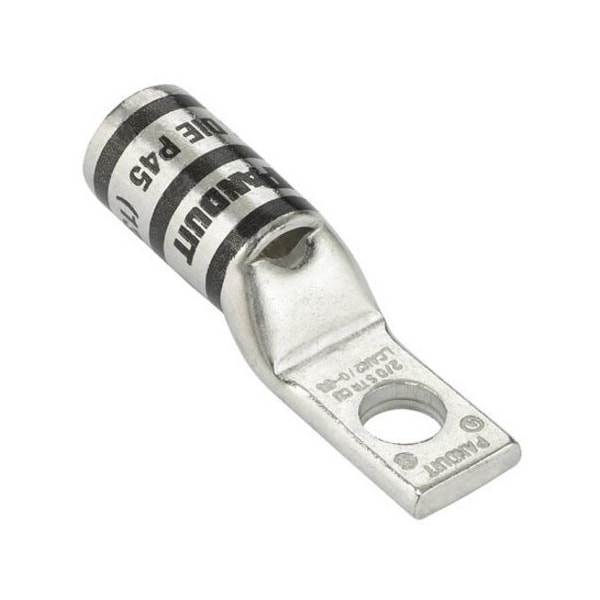

Conector de compresión Lug, 500 Kcmil
| Cable Size | 500 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.06 in |
| Material | Tin-Plated Copper |
| Length | 3.57 in |
| Color Code | Brown |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Overall Length | 3.57 in |
| Connection Material | Tin |
| Features | Angled Connector, Corrosion Resistant |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Maximum Voltage (kV) | 35 |
| T & B Die Index Number | 87 |
| Tongue Thickness (mm) | 5.6 |
| Barrel Length (mm) | 44.5 |
| Tongue Type | Narrow |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.26 |
| Stud Hole Size (mm) | 12.7 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (mm) | 90.2 |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
| Standards Met | CSA certified C22.2 No. 65-13, UL listedf 486A-486B File #E52164 |
| Wire Strip Length (mm) | 46 |
| Barrel Length (In.) | 1-3/4 |
| Stud Hole Size (In.) | 1 to 2 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (mm) | 26.9 |
| Tongue Angle | Straight |
| Tongue Width (In.) | 1.06 |
| Overall Length (In.) | 3.57 |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (kcmil) | 500 |
| Wire Strip Length (In.) | 1.8125 |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
