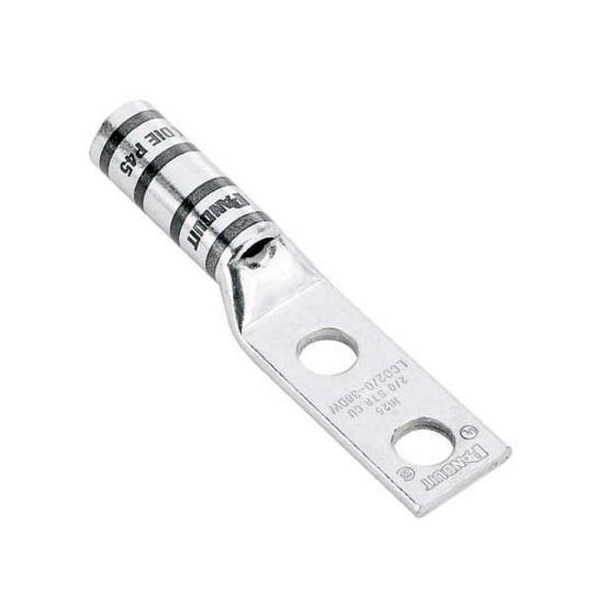

Conector de compresión para estirar, 500 kcmil.
| Cable Size | 500 kcmil |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.54 in |
| Material | Tin-Plated Copper |
| Length | 6.12 in |
| Color Code | Brown |
| Item | Lug Compression Connector |
| Overall Length | 6.12 in |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Features | Corrosion Resistant |
| Barrel Length (In.) | 2-1/2 |
| Tongue Type | Standard |
| Copper Code Conductor Size (kcmil) | 500 |
| Outer Diameter (mm) | 26.92 |
| Maximum Voltage (kV) | 35 |
| Tongue Width (In.) | 1.54 |
| Stud Hole Spacing (In.) | 1.75 |
| T & B Die Index Number | 20 |
| Inside Diameter (In.) | 0.84 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (mm) | 12.7 |
| Wire Strip Length (In.) | 42,409 |
| Overall Length (mm) | 155.4 |
| Outer Diameter (In.) | 1.06 |
| Wire Strip Length (mm) | 65.1 |
| Inside Diameter (mm) | 21.33 |
| Base Material | Copper |
| Barrel Type | Barrel with Inspection Window |
| Overall Length (In.) | 6.12 |
| Tongue Thickness (mm) | 5.6 |
| Lug Type | 2 Stud Hole Lug |
| Tongue Thickness (In.) | 0.22 |
| Panduit Die Index Number | P87 |
| Product Type | Copper Compression Connectors - Lugs |
| Burndy Die Index Number | 20 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Stud Hole Spacing (mm) | 44.5 |
| Finish/Coating | Tin-Plated |
| Tongue Angle | Straight |
| Stud Hole Size (In.) | 1 to 2 |
| Tongue Width (mm) | 39.1 |
| Barrel Length (mm) | 63.5 |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Lugs, Splices, Mechanical |
| Package Quantity | 1 |
