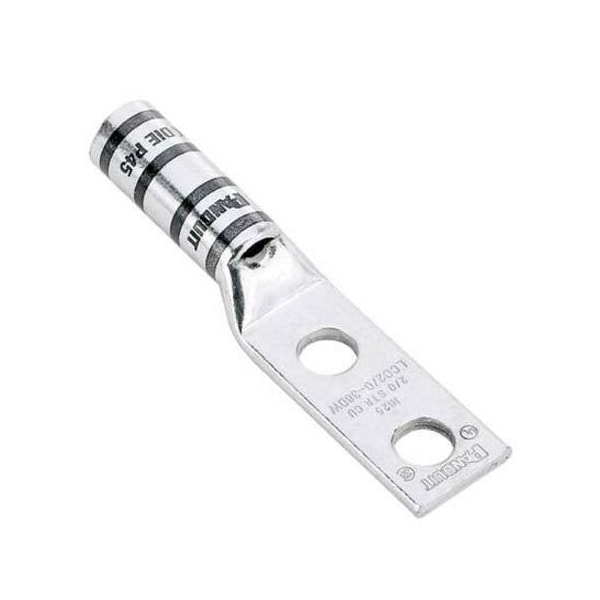

Conector de compresión de perno, No.1 AWG.
| Cable Size | 1 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.7 in |
| Material | Tin-Plated Copper |
| Length | 2.89 in |
| Color Code | Green |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Overall Length | 2.89 in |
| Connection Type | 1 x Terminal |
| Features | Corrosion Resistant |
| Barrel Length (mm) | 34.5 |
| Overall Length (mm) | 73.4 |
| Wire Strip Length (mm) | 36.5 |
| Tongue Type | Standard |
| Wire Strip Length (In.) | 1.44 |
| Stud Hole Size (In.) | 44,930 |
| Copper Code Conductor Size (AWG) | 1 |
| Base Material | Copper |
| Tongue Width (mm) | 17.8 |
| Tongue Thickness (mm) | 2.8 |
| Stud Hole Size (mm) | 6.4 |
| Tongue Width (In.) | 0.7 |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (In.) | 0.11 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 2.89 |
| Barrel Length (In.) | 1.36 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Spacing (mm) | 16 |
| Product Type | Copper Compression Connectors - Lugs |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Stud Hole Spacing (In.) | 0.63 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
