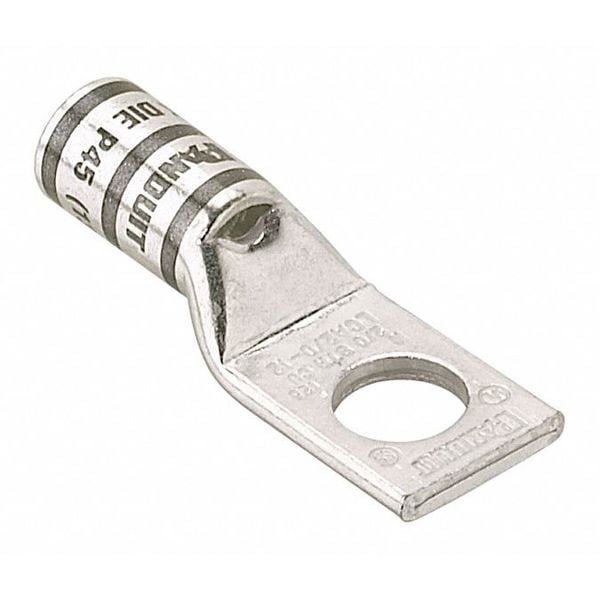

Conector de compresión de manguito, No.6 AWG
| Cable Size | 6 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.56 in |
| Material | Tin-Plated Copper |
| Length | 1.73 in |
| Color Code | Blue |
| Item | Lug Compression Connector |
| Overall Length | 1.73 in |
| Overall Length (mm) | 43.9 |
| Outer Diameter (mm) | 7.87 |
| Overall Length (In.) | 1.73 |
| Tongue Width (mm) | 14.2 |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| T & B Die Index Number | 7 |
| Burndy Die Index Number | 7 |
| Inside Diameter (mm) | 5.58 |
| Inside Diameter (In.) | 0.22 |
| Wire Strip Length (mm) | 22.2 |
| Tongue Thickness (In.) | 0.07 |
| Panduit Die Index Number | P24 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Thickness (mm) | 1.8 |
| Barrel Length (mm) | 20.57 |
| Outer Diameter (In.) | 0.31 |
| Stud Hole Size (In.) | 45,062 |
| Barrel Length (In.) | 0.81 |
| Copper Code Conductor Size (AWG) | 6 |
| Maximum Voltage (kV) | 35 |
| Lug Type | 1 Stud Hole Lug |
| Stud Hole Size (mm) | 7.9 |
| Tongue Width (In.) | 0.56 |
| Wire Strip Length (In.) | 45,115 |
| Tongue Angle | Straight |
| UL Temperature Rating (°C) | 90 |
| Base Material | Copper |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Type | Standard |
| Finish/Coating | Tin-Plated |
| Thickness | 70 mil |
| Product Material | Copper |
| Certifications & Standards | American Bureau Shipping Approved, CSA, UL |
| Product Name | Lug |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
