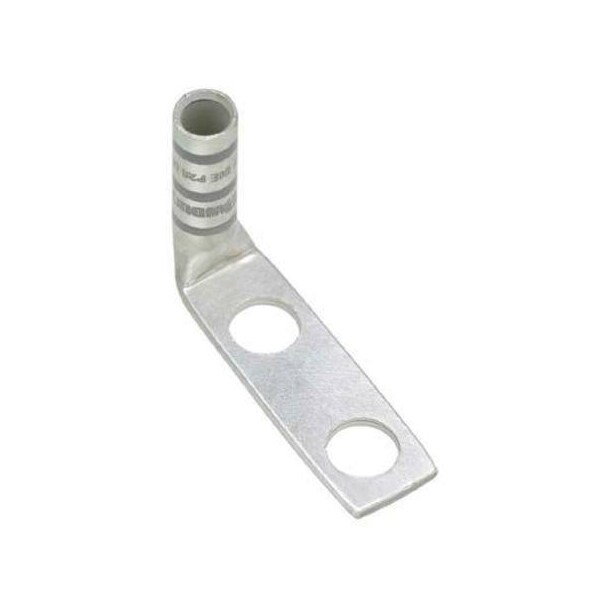

Conector de compresión para lug, calibre No. 6 AWG, paquete de 50
| Cable Size | 6 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.48 in |
| Material | Tin-Plated Copper |
| Length | 1.66 in |
| Color Code | Blue |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Overall Length | 1.66 in |
| Features | 90° Angled Connector, Corrosion Resistant |
| Stud Hole Size (In.) | 44,930 |
| Barrel Length (In.) | 1.07 |
| Maximum Voltage (kV) | 35 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Panduit Die Index Number | 24 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (In.) | 1.13 |
| Tongue Type | Standard |
| Wire Strip Length (mm) | 28.6 |
| Burndy Die Index Number | 7 |
| Barrel Length (mm) | 27.2 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| UL Temperature Rating (°C) | 90 |
| Copper Code Conductor Size (AWG) | 6 |
| Overall Length (In.) | 1.66 |
| Stud Hole Size (mm) | 6.4 |
| Overall Length (mm) | 42.2 |
| Tongue Thickness (mm) | 2 |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.08 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
