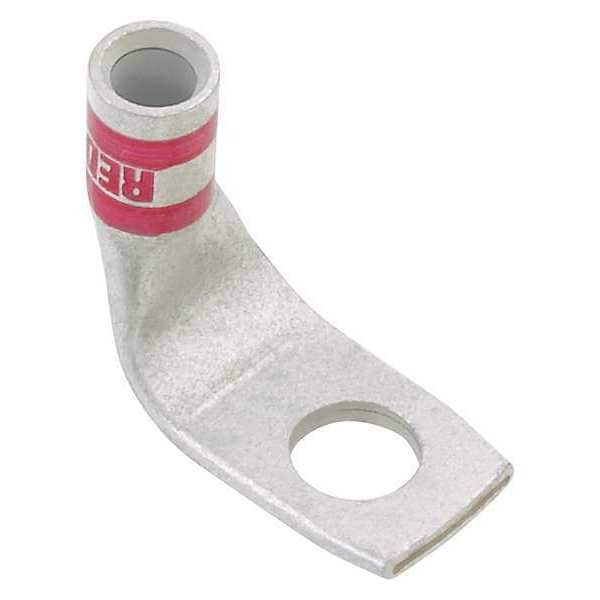

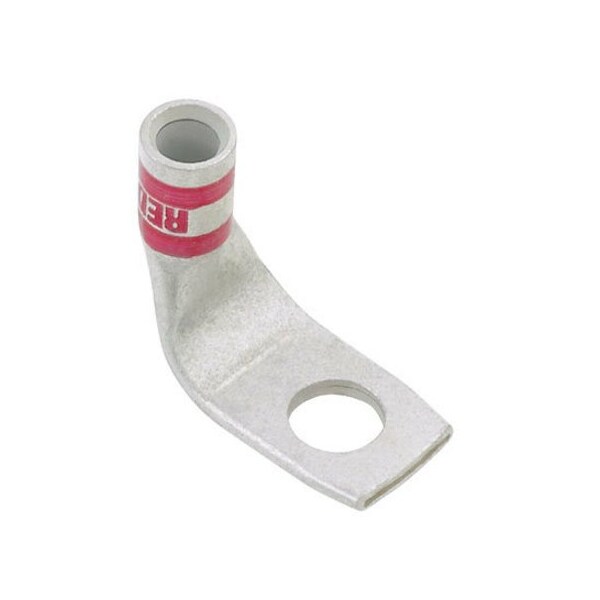

Conector de compresión para Lug, No. 8 AWG, paquete de 50.
| Cable Size | 8 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.48 in |
| Material | Tin-Plated Copper |
| Length | 0.99 in |
| Color Code | Red |
| Item | Lug Compression Connector |
| Overall Length | 0.99 in |
| Features | 90° Angled Connector, Corrosion Resistant |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 6.4 |
| Class G Copper Flex Conductor Size (AWG) | 8 |
| DLO Copper Flex Conductor Size (AWG) | 8 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (mm) | 25.2 |
| Tongue Thickness (mm) | 1.8 |
| Class M Copper Flex Conductor Size (AWG) | 8 |
| Wire Strip Length (mm) | 12.7 |
| Tongue Type | Standard |
| Class H Copper Flex Conductor Size (AWG) | 8 |
| Burndy Die Index Number | 49 |
| Overall Length (In.) | 0.99 |
| Base Material | Copper |
| Class I Copper Flex Conductor Size (AWG) | 8 |
| Tongue Width (mm) | 12.2 |
| Barrel Length (In.) | 0.42 |
| Copper Code Conductor Size (AWG) | 8 |
| Tongue Thickness (In.) | 0.07 |
| Panduit Die Index Number | P21 |
| Stud Hole Size (In.) | 44,930 |
| Tongue Width (In.) | 0.48 |
| Tongue Angle | 90° |
| Maximum Voltage (kV) | 35 |
| Class K Copper Flex Conductor Size (AWG) | 8 |
| Barrel Length (mm) | 10.7 |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
