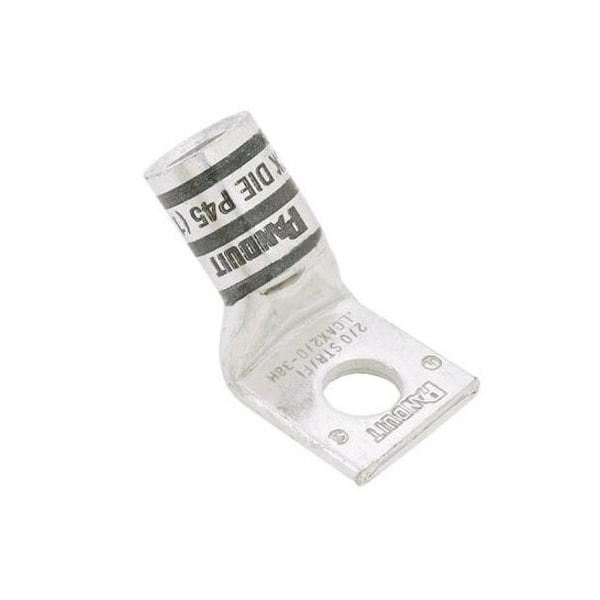

Terminal de anillo, cobre, calibre 1 AWG, perno de 1/4 pulgada, 45 grados.
| Cable Size | 1 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.76 in |
| Material | Tin-Plated Copper |
| Length | 1.43 in |
| Color Code | Green |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Overall Length | 1.43 in |
| Features | Corrosion Resistant, 45° Angled Connector |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Type | Standard |
| Stud Hole Size (mm) | 6.4 |
| Copper Code Conductor Size (AWG) | 1 |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (In.) | 0.12 |
| Burndy Die Index Number | 11 |
| Overall Length (In.) | 1.43 |
| Base Material | Copper |
| Tongue Angle | 45° |
| Barrel Length (mm) | 16.8 |
| Tongue Width (In.) | 0.76 |
| Product Type | Copper Compression Connectors - Lugs |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 19.1 |
| Stud Hole Size (In.) | 44,930 |
| Barrel Length (In.) | 0.66 |
| Overall Length (mm) | 36.3 |
| Maximum Voltage (kV) | 35 |
| Panduit Die Index Number | P37 |
| Tongue Width (mm) | 19.3 |
| Tongue Thickness (mm) | 3 |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
