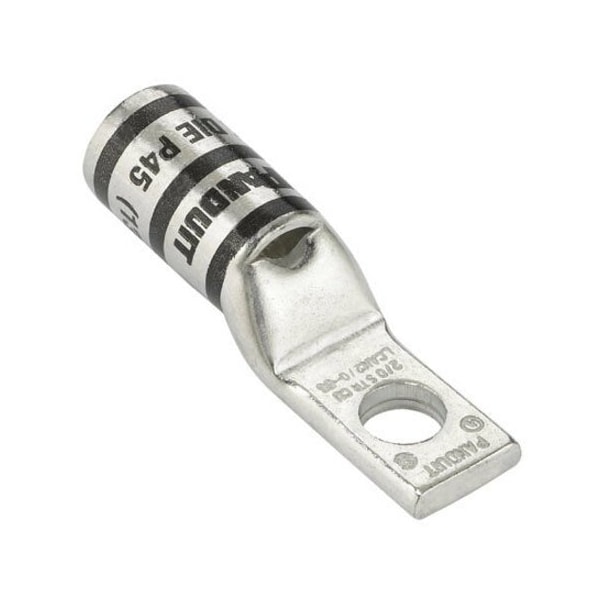

Terminal de conexión en ángulo recto, de cobre, calibre 1/0 Awg, estrecho, con tornillo de 1/4 de pulgada.
| Cable Size | 1/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.52 in |
| Material | Tin-Plated Copper |
| Length | 2 in |
| Color Code | Pink |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Overall Length | 2 in |
| Connection Material | Tin |
| Features | Angled Connector, Corrosion Resistant |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Product Type | Copper Compression Connectors - Lugs |
| Panduit Die Index Number | P42 |
| Overall Length (In.) | 2 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (mm) | 6.4 |
| Wire Strip Length (mm) | 25.4 |
| Wire Strip Length (In.) | 1 |
| Base Material | Copper |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (mm) | 23.9 |
| Burndy Die Index Number | 12 |
| Copper Code Conductor Size (AWG) | 36,526 |
| Tongue Angle | Straight |
| Stud Hole Size (In.) | 44,930 |
| Barrel Length (In.) | 0.94 |
| Tongue Width (mm) | 13.2 |
| Tongue Width (In.) | 0.52 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Type | Narrow |
| Tongue Thickness (In.) | 0.15 |
| Overall Length (mm) | 49.5 |
| Tongue Thickness (mm) | 3.3 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
