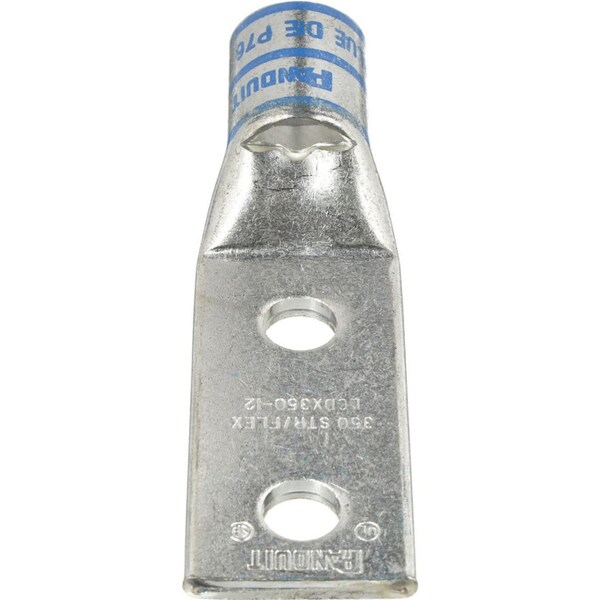

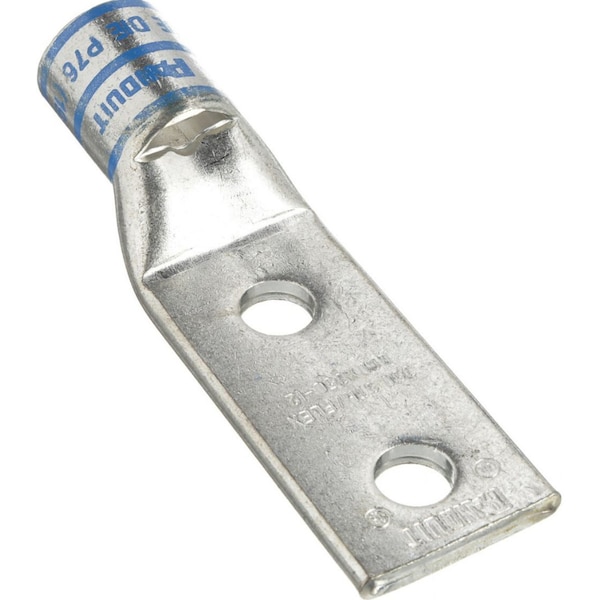

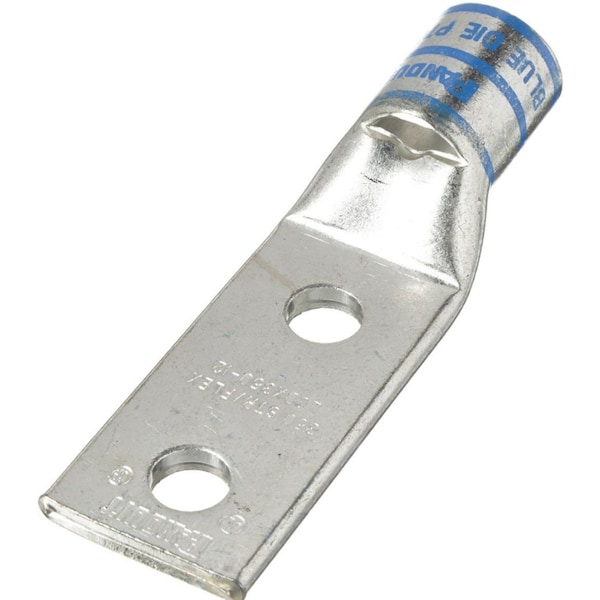

Lug, Cu, 2 orificios, 350 Kcmil, 1/2 pulgada de perno, 1.75 pulgadas.
| Cable Size | 350 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.54 in |
| Material | Tin-Plated Copper |
| Length | 4.92 in |
| Color Code | Blue |
| Item | Lug Compression Connector |
| Color | Blue |
| Overall Length | 4.92 in |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Features | Corrosion Resistant |
| Stud Hole Size (mm) | 12.7 |
| Outer Diameter (In.) | 1.06 |
| Barrel Length (mm) | 32.8 |
| Tongue Angle | Straight |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| Base Material | Copper |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (mm) | 5.6 |
| Outer Diameter (mm) | 26.92 |
| Inside Diameter (In.) | 0.84 |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (In.) | 1.29 |
| Overall Length (mm) | 125 |
| Class H Copper Flex Conductor Size (kcmil) | 350 |
| Stud Hole Spacing (In.) | 1.75 |
| Wire Strip Length (In.) | 0.9375 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| DLO Copper Flex Conductor Size (kcmil) | 373.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Width (mm) | 39.1 |
| Inside Diameter (mm) | 21.33 |
| Panduit Die Index Number | P76 |
| Class M Copper Flex Conductor Size (kcmil) | 350 |
| Class G Copper Flex Conductor Size (kcmil) | 350 |
| Stud Hole Spacing (mm) | 44.5 |
| Tongue Type | Standard |
| T & B Die Index Number | 19 |
| Tongue Width (In.) | 1.54 |
| Burndy Die Index Number | 19 |
| Wire Strip Length (mm) | 23.6 |
| Stud Hole Size (In.) | 1 to 2 |
| Overall Length (In.) | 4.92 |
| Lug Type | 2 Stud Hole Lug |
| Finish/Coating | Tin-Plated |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Thickness (In.) | 0.22 |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Color | Blue |
| Product Material | Copper |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
