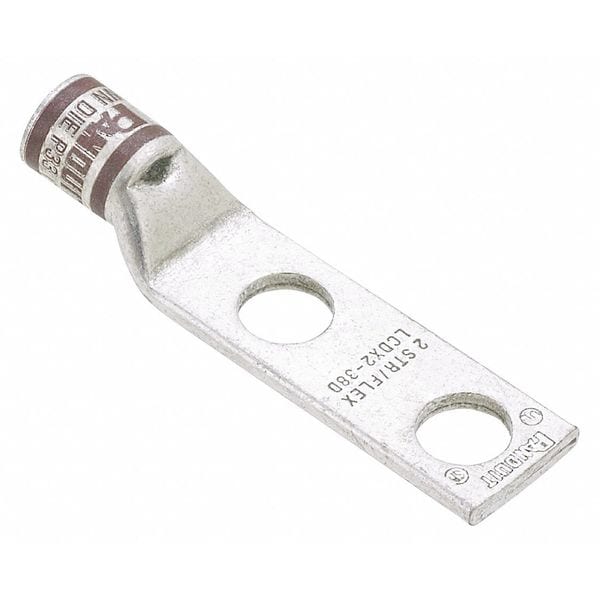

Lug, Cu, 2 Hoyos, 350 Kcmil, Perno de 3/8 pulgadas.
| Cable Size | 350 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.54 in |
| Material | Tin-Plated Copper |
| Length | 3.74 in |
| Color Code | Blue |
| Item | Lug Compression Connector |
| Overall Length | 3.74 in |
| Barrel Length (In.) | 1.29 |
| Stud Hole Spacing (mm) | 25.4 |
| Stud Hole Size (mm) | 9.5 |
| Maximum Voltage (kV) | 35 |
| Overall Length (In.) | 3.74 |
| Wire Strip Length (mm) | 35 |
| Class H Copper Flex Conductor Size (kcmil) | 350 |
| Wire Strip Length (In.) | 1.38 |
| Overall Length (mm) | 95 |
| Tongue Thickness (In.) | 0.22 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Tongue Width (In.) | 1.54 |
| Class M Copper Flex Conductor Size (kcmil) | 350 |
| Tongue Width (mm) | 39.1 |
| DLO Copper Flex Conductor Size (kcmil) | 373.7 |
| Tongue Thickness (mm) | 5.6 |
| Product Type | Compression Connectors - Lugs |
| Barrel Length (mm) | 32.8 |
| Stud Hole Spacing (In.) | 1 |
| Finish/Coating | Tin-Plated |
| Tongue Type | Standard |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Stud Hole Size (In.) | 44,993 |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| UL Temperature Rating (°C) | 90 |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (kcmil) | 350 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
