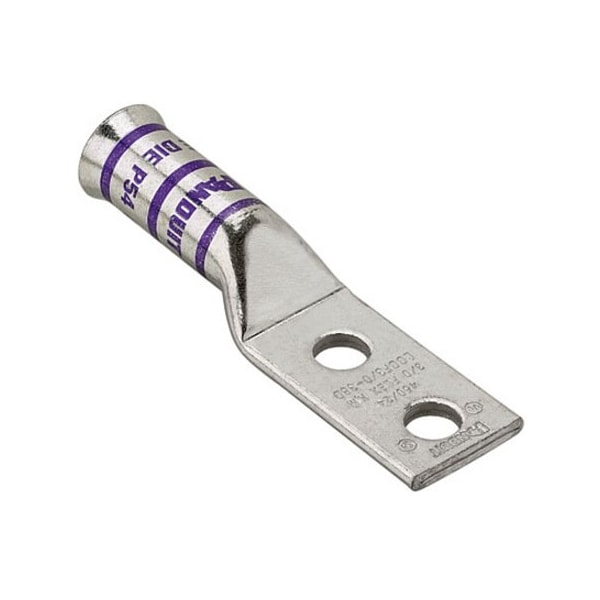

Escuadra de cobre, de 2 agujeros, calibre 500 Kcmil, con punta abierta y perno de 1/2 pulgada.
| Cable Size | 500 kcmil |
|---|---|
| Connector Type | Long Flared Barrel |
| Width | 1.89 in |
| Material | Tin-Plated Copper |
| Length | 7.04 in |
| Color Code | Pink |
| Item | Lug Compression Connector |
| Overall Length | 7.04 in |
| Features | Flared Barrel, Corrosion Resistant |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 2.9375 |
| DLO Copper Flex Conductor Size (kcmil) | 535.3 |
| Barrel Length (In.) | 2.88 |
| Product Type | Compression Connectors - Lugs |
| Tongue Width (mm) | 48 |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Stud Hole Size (In.) | 1 to 2 |
| Tongue Angle | Straight |
| Panduit Die Index Number | P99 |
| Barrel Length (mm) | 73.2 |
| Stud Hole Size (mm) | 12.7 |
| UL Temperature Rating (°C) | 90 |
| Tongue Width (In.) | 1.89 |
| Stud Hole Spacing (mm) | 44.5 |
| Tongue Thickness (In.) | 0.26 |
| Class M Copper Flex Conductor Size (kcmil) | 500 |
| Tongue Thickness (mm) | 6.6 |
| Class K Copper Flex Conductor Size (kcmil) | 500 |
| Tongue Type | Standard |
| Overall Length (In.) | 7.04 |
| Base Material | Copper |
| Overall Length (mm) | 178.8 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Stud Hole Spacing (In.) | 1.75 |
| Wire Strip Length (mm) | 74.6 |
| Finish/Coating | Tin-Plated |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
