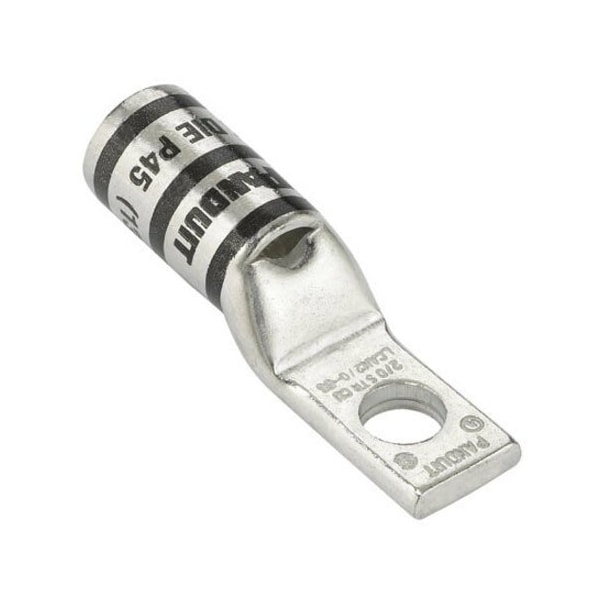

Lug, Cu, 2/0 AWG, Estrecho, Perno de 5/16 pulgadas
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.58 in |
| Material | Tin-Plated Copper |
| Length | 2.09 in |
| Color Code | Black |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Overall Length | 2.09 in |
| Features | Angled Connector, Corrosion Resistant |
| Stud Hole Size (In.) | 45,062 |
| Inside Diameter (mm) | 11.43 |
| Overall Length (mm) | 53.08 |
| Wire Strip Length (In.) | 42,370 |
| Wire Strip Length (mm) | 26.9 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 35 |
| Overall Length (In.) | 2.09 |
| Burndy Die Index Number | 13 |
| Panduit Die Index Number | P45 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Thickness (In.) | 0.14 |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Barrel Length (In.) | 0.98 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52165 |
| UL Temperature Rating (°C) | 90 |
| Base Material | Copper |
| Lug Type | 1 Stud Hole Lug |
| T & B Die Index Number | 13 |
| Stud Hole Size (mm) | 7.9 |
| Tongue Width (mm) | 13.2 |
| Tongue Angle | Straight |
| Outer Diameter (In.) | 0.58 |
| Tongue Thickness (mm) | 3.6 |
| Copper Code Conductor Size (AWG) | 36,557 |
| Tongue Type | Narrow |
| Barrel Length (mm) | 24.9 |
| Outer Diameter (mm) | 14.73 |
| Tongue Width (In.) | 0.58 |
| Inside Diameter (In.) | 0.45 |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
