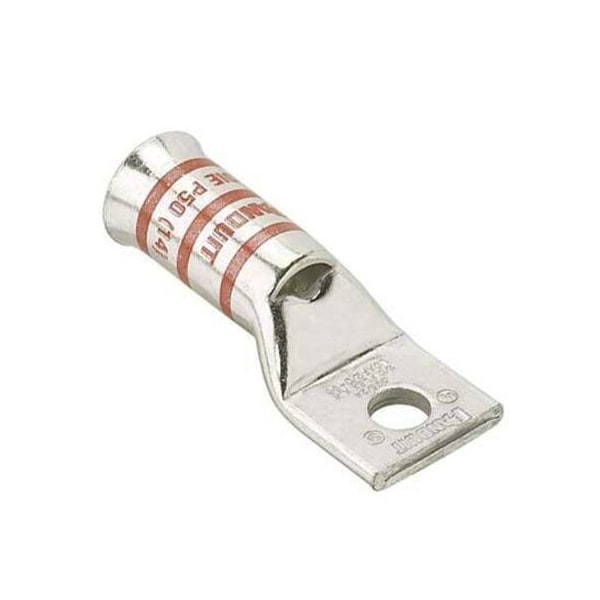

Terminal de compresión con orificio pasante, de cobre, calibre 300 Kcmil, con cuello ensanchado y tornillo de 1/2 pulgada.
| Cable Size | 300 kcmil |
|---|---|
| Connector Type | Flared Barrel |
| Width | 1.39 in |
| Material | Tin-Plated Copper |
| Length | 3.37 in |
| Color Code | Red |
| Item | Lug Compression Connector |
| Overall Length | 3.37 in |
| Features | Corrosion Resistant, Angled Connector |
| Panduit Die Index Number | P71 |
| Barrel Length (In.) | 1.65 |
| Maximum Voltage (kV) | 35 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (In.) | 3.37 |
| Tongue Type | Standard |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Wire Strip Length (In.) | 1.75 |
| Class M Copper Flex Conductor Size (kcmil) | 300 |
| Stud Hole Size (In.) | 1 to 2 |
| Product Type | Copper Compression Connectors - Lugs |
| Overall Length (mm) | 85.6 |
| Finish/Coating | Tin-Plated |
| Tongue Angle | Straight |
| Tongue Width (mm) | 35.3 |
| Barrel Length (mm) | 42 |
| Wire Strip Length (mm) | 44.5 |
| Stud Hole Size (mm) | 12.7 |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 4.6 |
| Class K Copper Flex Conductor Size (kcmil) | 300 |
| Tongue Width (In.) | 1.39 |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
