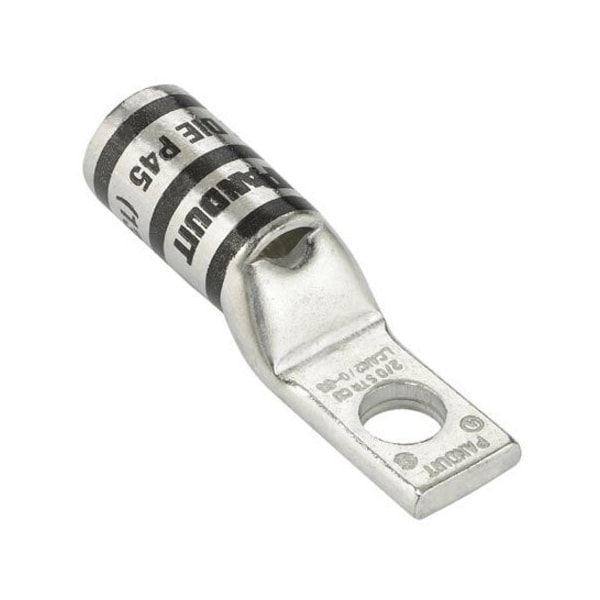

Lug, Cobre, #4 Awg, Estrecho, Tornillo de 1/4 de pulgada.
| Cable Size | 4 to 3 AWG STR, 2 AWG SOL |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.4 in |
| Material | Tin-Plated Copper |
| Length | 1.63 in |
| Color Code | Gray |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Overall Length | 1.63 in |
| Features | Corrosion Resistant, Angled Connector |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Thickness (In.) | 0.11 |
| Base Material | Copper |
| Panduit Die Index Number | P29 |
| UL Temperature Rating (°C) | 90 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Type | Narrow |
| Maximum Voltage (kV) | 35 |
| Tongue Width (In.) | 0.4 |
| Tongue Thickness (mm) | 2.8 |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Burndy Die Index Number | 8 |
| Tongue Width (mm) | 10.2 |
| Stud Hole Size (In.) | 44,930 |
| Barrel Length (mm) | 20.6 |
| T & B Die Index Number | 29 |
| Wire Strip Length (In.) | 45,115 |
| Copper Code Conductor Size (AWG) | 4 |
| Stud Hole Size (mm) | 6.4 |
| Wire Strip Length (mm) | 22.2 |
| Overall Length (In.) | 1.63 |
| Tongue Angle | Straight |
| Overall Length (mm) | 41.4 |
| Barrel Length (In.) | 0.81 |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
