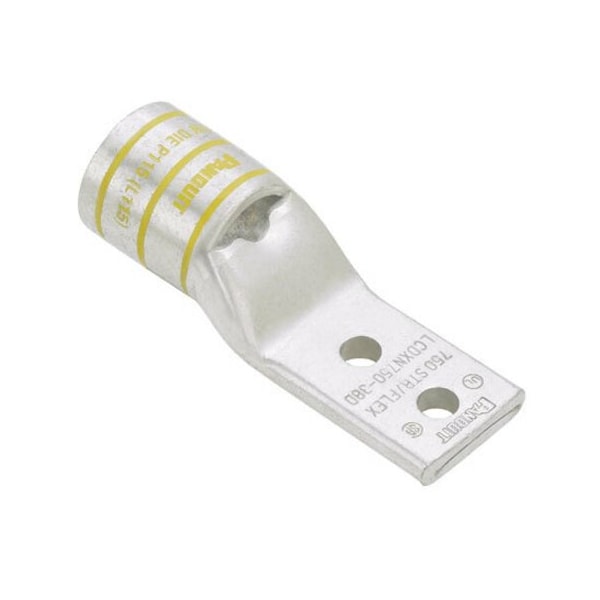

Lug, Cu, 777.7 Kcmil, Angosto, Perno de 1/2"
| Cable Size | 750 STR/Flex |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1-1/2 in |
| Material | Tin-Plated Copper |
| Length | 5.55 in |
| Color Code | Yellow |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Overall Length | 5.55 in |
| Features | Corrosion Resistant |
| Overall Length (In.) | 5.55 |
| Tongue Thickness (mm) | 8.9 |
| Wire Strip Length (In.) | 1.75 |
| Tongue Thickness (In.) | 0.35 |
| Tongue Width (mm) | 38.1 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Size (In.) | 1 to 2 |
| Barrel Length (mm) | 42.2 |
| Overall Length (mm) | 141 |
| Stud Hole Spacing (mm) | 44.5 |
| Tongue Width (In.) | 1-1/2 |
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (mm) | 12.7 |
| Barrel Length (In.) | 1.66 |
| Wire Strip Length (mm) | 45 |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
