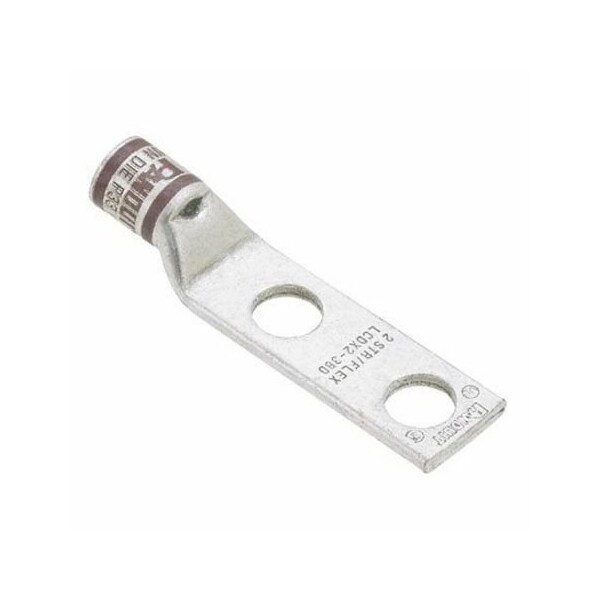

Terminal de conexión de ojal, cobre, estampado, de 2 orificios, calibre #2, 1/4 de pulgada, .75 de pulgada.
| Cable Size | 2 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.7 in |
| Material | Tin-Plated Copper |
| Length | 2-1/4 in |
| Color Code | Brown |
| Item | Lug Compression Connector |
| Color | Brown |
| Overall Length | 2-1/4 in |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Features | Corrosion Resistant |
| Tongue Thickness (In.) | 0.11 |
| DLO Copper Flex Conductor Size (AWG) | 2 |
| Class M Copper Flex Conductor Size (AWG) | 2 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Length (mm) | 15 |
| Product Type | Compression Connectors - Lugs |
| Class G Copper Flex Conductor Size (AWG) | 2 |
| Tongue Type | Standard |
| UL Temperature Rating (°C) | 90 |
| Tongue Width (mm) | 17.8 |
| Class K Copper Flex Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 0.59 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (mm) | 17 |
| Tongue Width (In.) | 0.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Overall Length (mm) | 57.2 |
| Stud Hole Size (mm) | 6.4 |
| Class H Copper Flex Conductor Size (AWG) | 2 |
| Class I Copper Flex Conductor Size (AWG) | 2 |
| Base Material | Copper |
| Burndy Die Index Number | 10 |
| Panduit Die Index Number | P33 |
| Overall Length (In.) | 2-1/4 |
| Copper Code Conductor Size (AWG) | 2 |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 44,930 |
| Tongue Thickness (mm) | 2.8 |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Color | Brown |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
