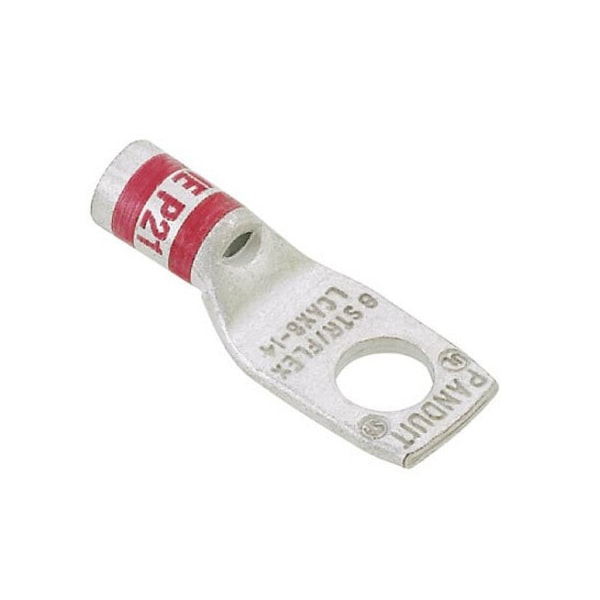

Terminal de conexión de cobre con estaño, calibre 2/0 Awg, con perno de 1/4.
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.96 in |
| Material | Tin-Plated Copper |
| Length | 1.97 in |
| Color Code | Black |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Overall Length | 1.97 in |
| Features | Angled Connector, Corrosion Resistant |
| Barrel Length (In.) | 0.83 |
| Overall Length (mm) | 50 |
| Class M Copper Flex Conductor Size (AWG) | 36,557 |
| Standards Met | CSA certifiied C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Overall Length (In.) | 1.97 |
| Tongue Thickness (mm) | 3.3 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (mm) | 22.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Copper Code Conductor Size (AWG) | 36,557 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (In.) | 45,115 |
| Base Material | Copper |
| Burndy Die Index Number | 13 |
| Barrel Length (mm) | 21.1 |
| T & B Die Index Number | 45 |
| Class H Copper Flex Conductor Size (AWG) | 36,557 |
| Class I Copper Flex Conductor Size (AWG) | 36,557 |
| Stud Hole Size (mm) | 6.4 |
| Class G Copper Flex Conductor Size (AWG) | 36,557 |
| Class K Copper Flex Conductor Size (AWG) | 36,557 |
| Stud Hole Size (In.) | 44,930 |
| UL Temperature Rating (°C) | 90 |
| DLO Copper Flex Conductor Size (AWG) | 36,557 |
| Panduit Die Index Number | P45 |
| Tongue Width (mm) | 24.4 |
| Tongue Width (In.) | 0.96 |
| Tongue Type | Standard |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
