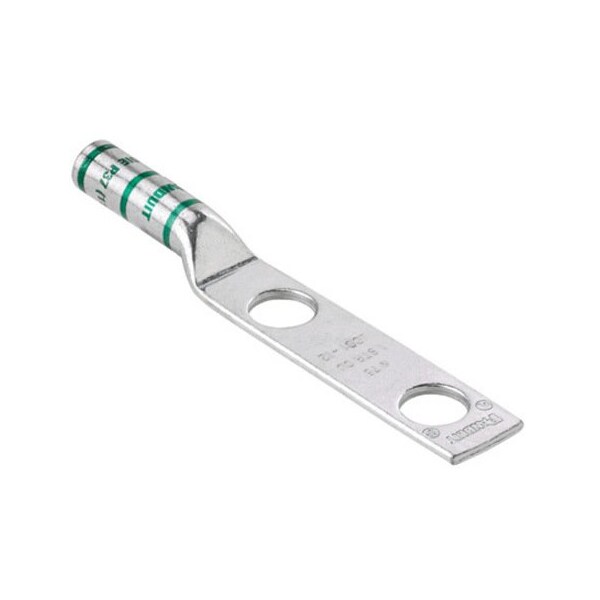

Terminal de ojillo de cobre con dos orificios, calibre #2 AWG, diámetro de 3/8 pulgadas, largo de 1.75 pulgadas.
| Cable Size | 2 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.66 in |
| Material | Tin-Plated Copper |
| Length | 4.09 in |
| Color Code | Brown |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Overall Length | 4.09 in |
| Features | Corrosion Resistant |
| Wire Strip Length (mm) | 31.8 |
| Barrel Length (mm) | 29.5 |
| Tongue Thickness (mm) | 2.5 |
| Tongue Width (In.) | 0.66 |
| Stud Hole Spacing (In.) | 1.75 |
| Barrel Length (In.) | 1.16 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Burndy Die Index Number | 10 |
| Stud Hole Spacing (mm) | 44.5 |
| Stud Hole Size (In.) | 44,993 |
| Tongue Type | Standard |
| Overall Length (In.) | 4.09 |
| Base Material | Copper |
| UL Temperature Rating (°C) | 90 |
| Copper Code Conductor Size (AWG) | 2 |
| Wire Strip Length (In.) | 1.25 |
| Panduit Die Index Number | P33 |
| Product Type | Copper Compression Connectors - Lugs |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (In.) | 0.1 |
| Overall Length (mm) | 103.9 |
| Tongue Width (mm) | 16.8 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
