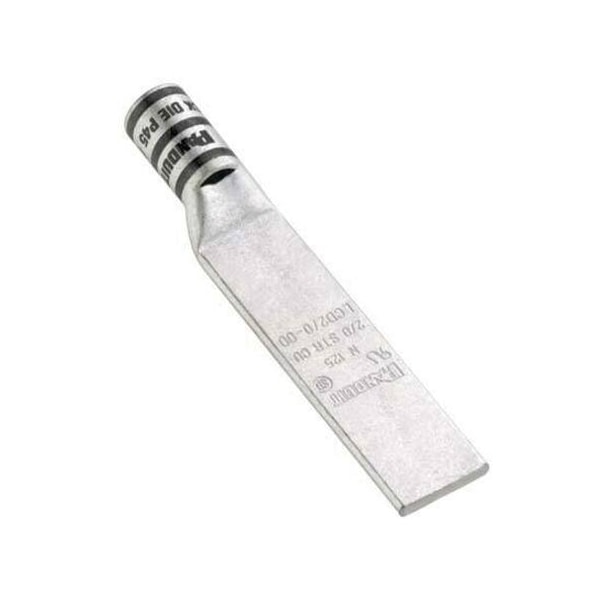

Lug, Cu, Longblank, 4/0 Awg -> Terminal, cobre, en blanco largo, calibre 4/0 AWG
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.06 in |
| Material | Tin-Plated Copper |
| Length | 4.58 in |
| Color Code | Purple |
| Item | Lug Compression Connector |
| Overall Length | 4.58 in |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Features | Corrosion Resistant |
| Overall Length (In.) | 4.58 |
| Overall Length (mm) | 116.3 |
| Tongue Width (mm) | 26.9 |
| Barrel Length (In.) | 1.19 |
| Tongue Type | Standard |
| Panduit Die Index Number | P54 |
| Tongue Thickness (mm) | 3.6 |
| Barrel Length (mm) | 30.2 |
| Burndy Die Index Number | 15 |
| Product Type | Compression Connectors - Lugs |
| Tongue Thickness (In.) | 0.14 |
| Tongue Width (In.) | 1.06 |
| Base Material | Copper |
| Wire Strip Length (In.) | 1.25 |
| Wire Strip Length (mm) | 31.8 |
| Copper Code Conductor Size (AWG) | 36,617 |
| UL Temperature Rating (°C) | 90 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 35 |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
