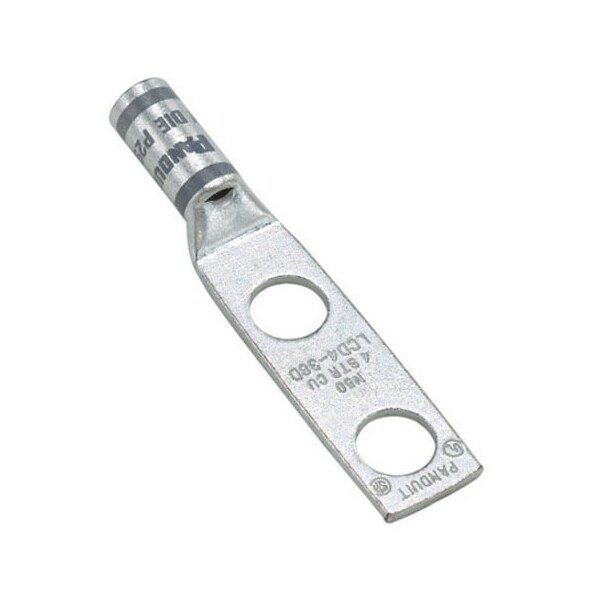

Lug, Cu, Sbw, 2 agujeros, 300 Kcmil, 3/8
Conector tipo ojal, cobre, con recubrimiento de estaño, 2 agujeros, calibre 300 Kcmil, 3/8 de pulgada.
| Cable Size | 300 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.19 in |
| Material | Tin-Plated Copper |
| Length | 3.74 in |
| Color Code | White |
| Item | Lug Compression Connector |
| Overall Length | 3.74 in |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Features | Corrosion Resistant |
| Copper Code Conductor Size (kcmil) | 300 |
| Tongue Width (mm) | 30.2 |
| Overall Length (mm) | 95 |
| Barrel Length (mm) | 36.6 |
| Tongue Thickness (mm) | 4.1 |
| UL Temperature Rating (°C) | 90 |
| Wire Strip Length (mm) | 38.1 |
| Tongue Type | Standard |
| Overall Length (In.) | 3.74 |
| Wire Strip Length (In.) | 1.5 |
| Panduit Die Index Number | P66 |
| Stud Hole Spacing (mm) | 25.4 |
| Stud Hole Spacing (In.) | 1 |
| Finish/Coating | Tin-Plated |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (In.) | 1.19 |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (In.) | 0.16 |
| Stud Hole Size (In.) | 44,993 |
| Burndy Die Index Number | 17 |
| Stud Hole Size (mm) | 9.5 |
| Base Material | Copper |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.44 |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
