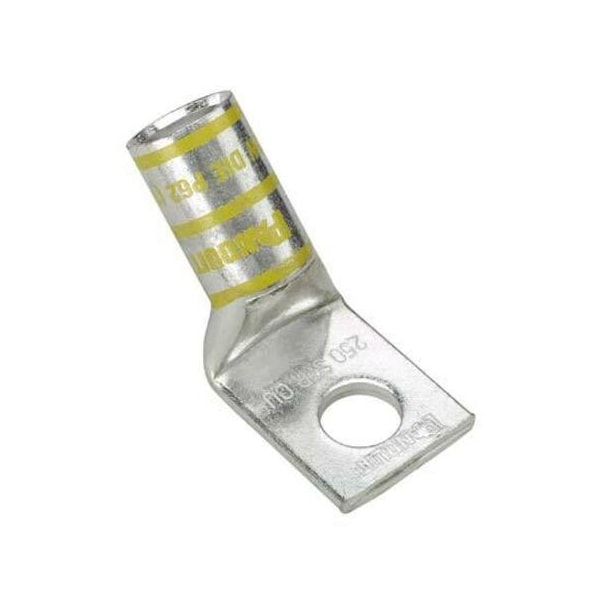

Terminal de anillo de cobre estañado de calibre 2/0 AWG con un perno de 1/2 pulgada y un ángulo de 45 grados.
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.85 in |
| Material | Tin-Plated Copper |
| Length | 2.08 in |
| Color Code | Black |
| Item | Lug Compression Connector |
| Connection Type | 1 x Terminal |
| Overall Length | 2.08 in |
| Connection Material | Tin |
| Features | 45° Angled Connector, Corrosion Resistant |
| Maximum Voltage (kV) | 35 |
| Barrel Length (mm) | 24.9 |
| Copper Code Conductor Size (AWG) | 36,557 |
| Barrel Length (In.) | 0.98 |
| Wire Strip Length (mm) | 27 |
| Tongue Thickness (In.) | 0.13 |
| Wire Strip Length (In.) | 1.06 |
| Burndy Die Index Number | 13 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 21.6 |
| Base Material | Copper |
| Stud Hole Size (In.) | 42.767 |
| Overall Length (In.) | 2.08 |
| Tongue Thickness (mm) | 3.3 |
| Tongue Width (In.) | 0.85 |
| Tongue Type | Standard |
| Stud Hole Size (mm) | 12.7 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Angle | 45° |
| Panduit Die Index Number | P45 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Overall Length (mm) | 52.8 |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
