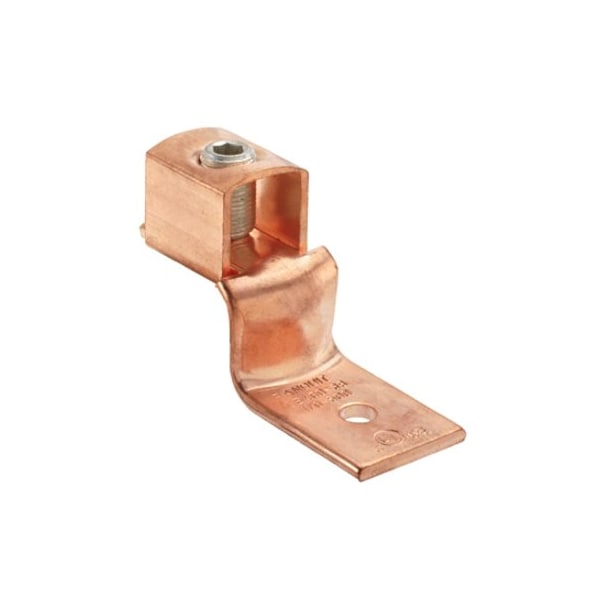

Conector mecánico Lug, calibre No.4-3/0 AWG.
| Item | Lug Mechanical Connector,No.4-3/0 AWG |
|---|---|
| Overall Length | 2.2 in |
| Height | 1 in |
| Overall Height (mm) | 25.7 |
| Hex Size (mm) | 4.8 |
| Amperage (A) | 175 |
| Tongue Length (mm) | 23.9 |
| Tongue Length (In.) | 1.18 |
| Tongue Thickness (mm) | 4.1 |
| Tongue Thickness (In.) | 0.16 |
| Overall Length (In.) | 2.2 |
| Number of Holes | 1 |
| Tongue Type | Offset Floating Tongue |
| Tongue Width (mm) | 19.1 |
| Overall Height (In.) | 1 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Tongue Width (In.) | 3/4 |
| Product Type | Connector |
| Overall Length (mm) | 55.9 |
| Product Name | Terminal Connector |
| Connector Details | 1 x Barrel Plug |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
