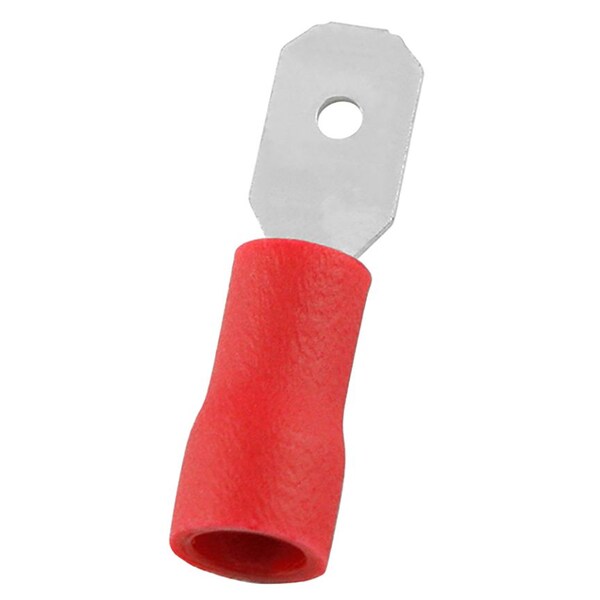

Male Disconnect, 22, 16 Awg, PK25
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Insulation Color | Red |
| Item | Male Disconnect,22,16 Awg,PK25 |
| Max. Temp. | 167 deg F |
| Terminal Type | Male Disconnects |
| Overall Length | 3/4 in |
| Max. Voltage | 300 V |
| Standards | cULus, E78522 |
| Connection Material | Brass |
| Seam | Butted |
| Finish | Tin-Plated |
| Width | 0.19 in |
| Insulation Dia | 0.15 in |
| Color Coding | Red |
| Product Class | Wire Termination |
| Max Operating Temperature | 75 degrees celsius |
| Barrel Type | Seam |
| Package Quantity | 25 |
