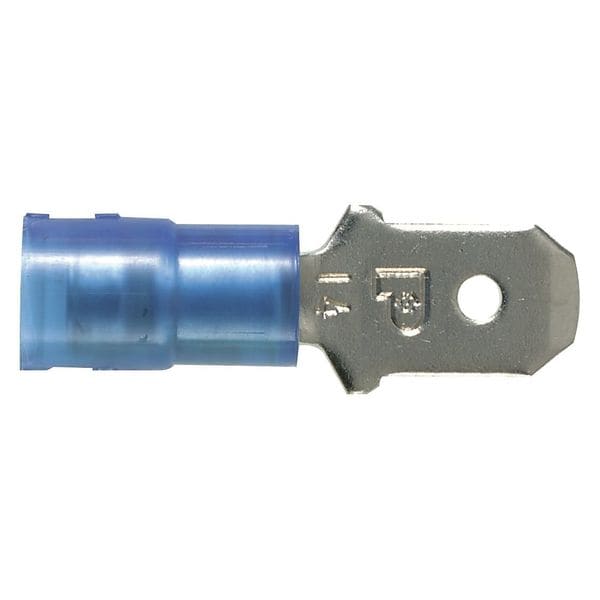

Male Disconnect, Blue, 16-14AWG, PK100
| Item | Male Disconnect |
|---|---|
| Insulation | Partial |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Color | Blue |
| Color Code | Blue |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Overall Length | 0.9 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Nickel-Plated Copper |
| Barrel Inside Dia. | 0.09 in |
| Standards | C22.2 No.153, CSA Certified LR31212, UL 310, UL Listed 20H3 E78522 |
| Features | Flame Retardant |
| Width | 0.3 in |
| Termination Style | Crimp |
| UL 94 Flammability Rating | HB |
| Tab Thickness | 0.032 in |
| Barrel Inside Diameter | 0.09 in |
| Tab Width | 1/4 in |
| Maximum Voltage | 600 V |
| Disconnect Style | Tab |
| Terminal Type | Tab |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Male Tab can be Inserted and Removed From the Female Disconnect Without the Use of Tools for Lower Installed Cost, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Seam Style | Sleeved Barrel |
| Minimum Operating Temperature | -60 deg F |
| Maximum Wire Size | 14 AWG |
| Contact Finish | Nickel |
| Insulation Material | Nylon |
| RoHS Compliant | Yes |
| Strip Length | 1/4 in |
| Minimum Wire Size | 16 AWG |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Copper |
| Insulation Coverage | Partial Coverage |
| Barrel Style | Sleeved Barrel |
| Flammability Rating | UL94-HB |
| Minimum Copper Conductor Size (AWG) | #16 |
| Overall Width (mm) | 6.4 |
| Base Material | Copper |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Overall Thickness (In.) | 0.03 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Wire Size (AWG) | #14 |
| Overall Width (In.) | 1/4 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Disconnect Type | Male Tab Disconnect |
| Tongue Angle | Straight |
| Overall Length (In.) | 0.9 |
| Tab Size (mm) | 6.3 x 0.8 |
| Overall Thickness (mm) | 0.8 |
| Product Type | Disconnect |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Finish/Coating | Nickel-Plated |
| Overall Length (mm) | 22.9 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 x 0.032 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Minimum Wire Size (AWG) | #16 |
| Insulation Diameter (In.) | 0.16 |
| Barrel Type | Standard |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Color | Blue |
| Product Material | Copper |
| Connector Details | 1 x (Quick Disconnect) |
| Contact Plating | Nickel |
| Packaging Type | Bottle |
| Sub Brand | Pan-Term® |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 100 |
