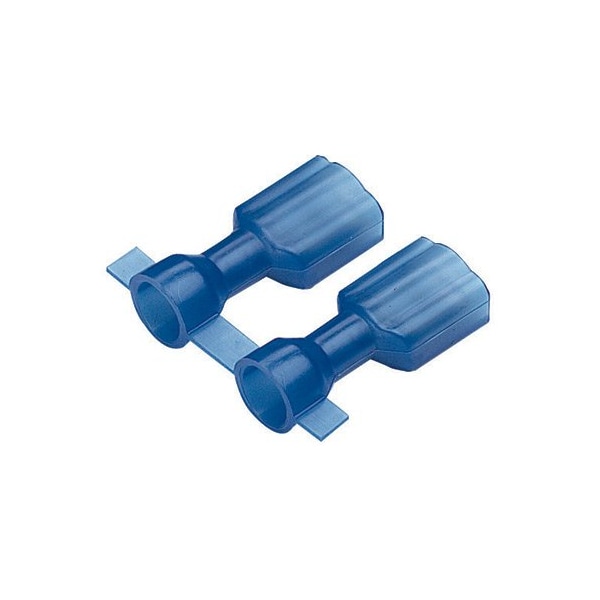

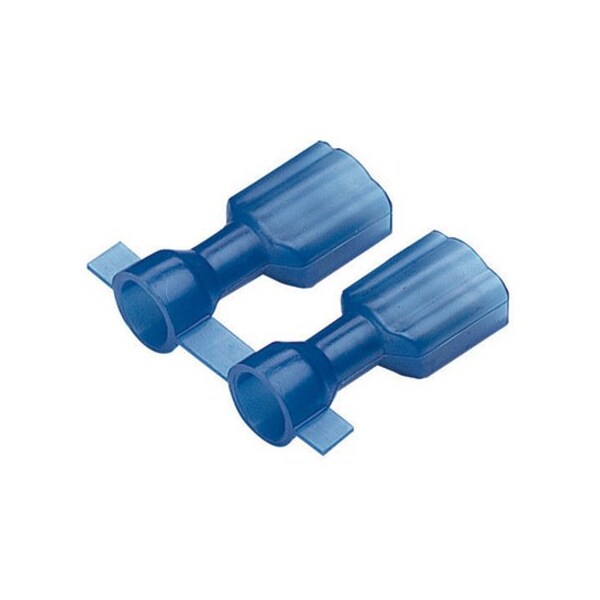

Male Disconnect, nylon fully insulated,
| For Use With | Crimp press with CA9 (CD9-5B) or CA-800EZ (CD-800-5) applicator |
|---|---|
| Color Code | Blue |
| Insulation Type | Fully Insulated |
| Overall Length | 0.9 in |
| Features | Molded, Flame Retardant |
| Width | 0.4 in |
| Height | 0.29 in |
| Wire Strip Length (mm) | 7.1 |
| Maximum Operating Temperature (°C) | 105 |
| Product Type | Disconnect |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Overall Width (In.) | 0.42 |
| Finish/Coating | Nickel-Plated |
| Disconnect Type | Male Tab Disconnect |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Tongue Angle | Straight |
| Overall Length (In.) | 0.9 |
| Tab Size (In.) | 0.25 x 0.032 |
| Maximum Voltage (kV) | 0.6 |
| Insulation Material | Nylon |
| Overall Length (mm) | 22.86 |
| Minimum Wire Size (AWG) | #16 |
| Flammability Rating | UL94-HB |
| Barrel Type | Funnel |
| Overall Height (In.) | 0.295 |
| Base Material | Brass |
| Maximum Wire Insulation Diameter (mm) | 4.01 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Voltage (V) | 600 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Wire Insulation Diameter (In.) | 0.158 |
| Tab Size (mm) | 6.3 x 0.8 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Size (AWG) | #14 |
| Overall Height (mm) | 7.49 |
| Overall Width (mm) | 10.66 |
| Product Color | Blue |
| Contact Plating | Nickel |
| Product Name | Terminal Connector |
| Product Material | Brass |
| Connector Details | 1 x (Quick Disconnect) |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Disconnects |
| Package Quantity | 2000 |
