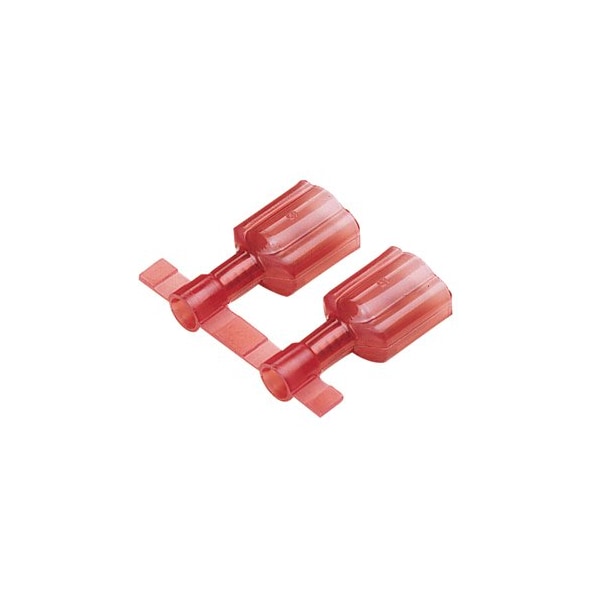

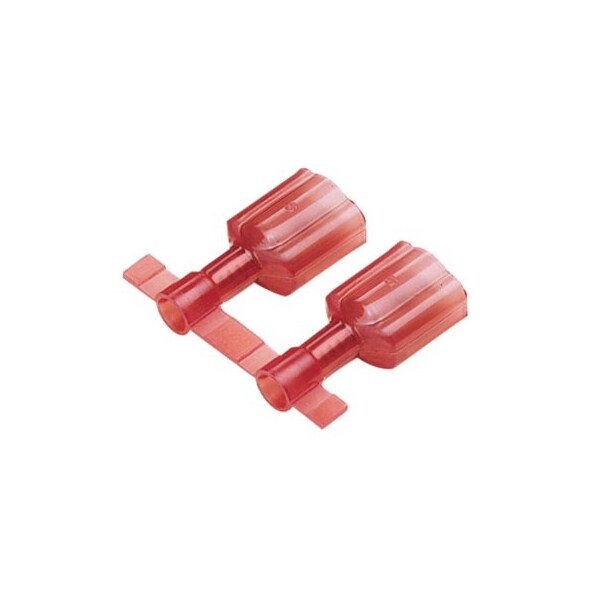

Male Disconnect, nylon fully insulated,
| For Use With | Crimp press with CA9 (CD9-4B) or CA-800EZ (CD-800-4) applicator |
|---|---|
| Color Code | Red |
| Insulation Type | Fully Insulated |
| Overall Length | 0.91 in |
| Features | Molded, Flame Retardant |
| Width | 1/2 in |
| Height | 0.34 in |
| Tab Size (mm) | 6.3 x 0.8 |
| Maximum Wire Size (AWG) | #18 |
| Barrel Type | Standard |
| Insulation Material | Nylon |
| Overall Length (In.) | 0.91 |
| Overall Width (mm) | 11.4 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Tab Size (In.) | 0.25 x 0.032 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Flammability Rating | UL94-HB |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Finish/Coating | Nickel-Plated |
| Overall Length (mm) | 23.1 |
| Disconnect Type | Male Tab Disconnect |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (mm) | 7.1 |
| Base Material | Brass |
| Maximum Copper Conductor Size (AWG) | #18 |
| Overall Width (In.) | 0.45 |
| Maximum Wire Insulation Diameter (In.) | 0.135 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Overall Height (In.) | 0.34 |
| Product Type | Disconnect |
| Overall Height (mm) | 8.6 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (mm) | 3.43 |
| Tongue Angle | Straight |
| Product Name | Terminal Connector |
| Product Color | Red |
| Product Material | Brass |
| Contact Plating | Nickel |
| Connector Details | 1 x (Quick Disconnect) |
| Product Class | Disconnects |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 1000 |
