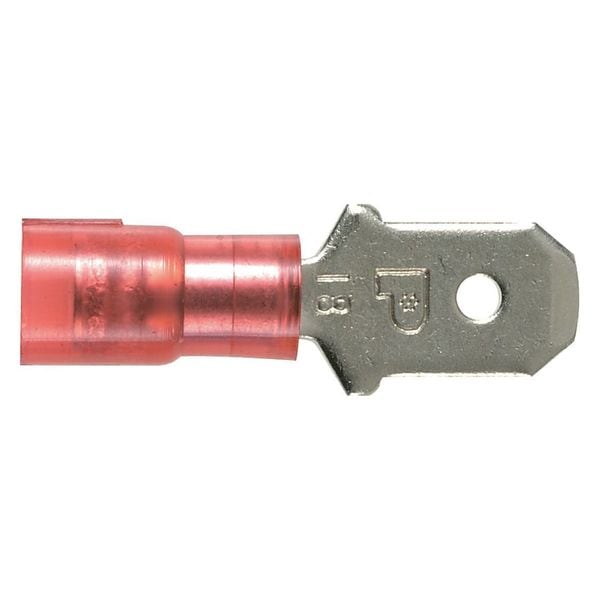

Male Disconnect, Red, 22-18AWG, PK100
| Item | Male Disconnect |
|---|---|
| Insulation | Partial |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Color | Red |
| Color Code | Red |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Wire Range | 22 to 18 AWG |
| Overall Length | 0.9 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 0.08 in |
| Connection Material | Nickel-Plated Copper |
| Standards | C22.2 No.153, CSA Certified LR31212, UL 310 Listed, UL Listed 20H3 E78522 |
| Features | Flame Retardant |
| Width | 0.3 in |
| Barrel Size | Standard |
| Minimum Wire Size | 22 AWG |
| Strip Length | 1/4 in |
| Barrel Inside Diameter | 0.08 in |
| Disconnect Style | Tab |
| Tab Thickness | 0.032 in |
| Minimum Operating Temperature | -60 deg F |
| Terminal Type | Tab |
| Contact Finish | Nickel |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Male Tab can be Inserted and Removed From the Female Disconnect Without the Use of Tools for Lower Installed Cost, Male Tab Couples With (All 0.250 X 0.032) Female Disconnects, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Vibration Resistant |
| RoHS Compliant | Yes |
| Insulation Coverage | Partial Coverage |
| Maximum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 18 AWG |
| Contact Material | Copper |
| Seam Style | Sleeved Barrel |
| Insulation Material | Nylon |
| UL 94 Flammability Rating | V-2, HB |
| Termination Style | Crimp |
| Tab Width | 1/4 in |
| Barrel Style | Sleeved Barrel |
| Tab Size (mm) | 6.3 x 0.8 |
| Overall Width (In.) | 1/4 |
| Maximum Voltage (V) | 600 |
| Overall Thickness (In.) | 0.03 |
| Maximum Wire Size (AWG) | #18 |
| Finish/Coating | Nickel-Plated |
| Overall Width (mm) | 6.4 |
| Tongue Angle | Straight |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (mm) | 7.1 |
| Insulation Diameter (mm) | 3.5 |
| Overall Length (In.) | 0.9 |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Wire Insulation Diameter (mm) | 3.5 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Base Material | Copper |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Insulation Diameter (In.) | 0.14 |
| Maximum Voltage (kV) | 0.6 |
| Overall Thickness (mm) | 0.8 |
| Disconnect Type | Male Tab Disconnect |
| Maximum Copper Conductor Size (AWG) | #18 |
| Barrel Type | Standard |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Tab Size (In.) | 0.25 x 0.032 |
| Wire Strip Length (In.) | 11,933 |
| Overall Length (mm) | 22.9 |
| Minimum Wire Size (AWG) | #22 |
| Product Type | Disconnect |
| Contact Plating | Nickel |
| Environmentally Friendly | Yes |
| Product Color | Red |
| Connector Details | 1 x (Quick Disconnect) |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 100 |
