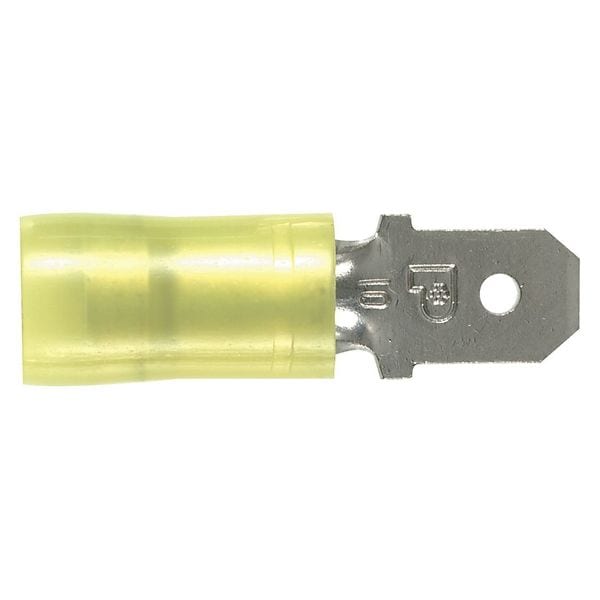

Desconexión macho, amarillo, 12-10AWG, paquete de 50
| Item | Male Disconnect |
|---|---|
| Insulation | Partial |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Color | Yellow |
| Color Code | Yellow |
| Insulation Type | Nylon |
| Wire Range | 12 to 10 AWG |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 1.03 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Standards | American Bureau of Shipping (ABS), RoHS Compliant |
| Connection Material | Nickel-Plated Copper |
| Barrel Inside Dia. | 1/8 in |
| Features | Flame Retardant |
| Width | 0.3 in |
| RoHS Compliant | Yes |
| Tab Thickness | 0.032 in |
| Contact Finish | Nickel |
| Barrel Size | Standard |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 deg F |
| Barrel Inside Diameter | 1/8 in |
| Seam Style | Sleeved Barrel |
| Tab Width | 1/4 in |
| Insulation Coverage | Full Coverage |
| Termination Style | Crimp |
| Maximum Wire Size | 10 AWG |
| Insulation Material | Nylon |
| Terminal Type | Tab |
| Disconnect Style | Tab |
| Minimum Operating Temperature | -60 deg F |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Male Tab can be Inserted and Removed From the Female Disconnect Without the Use of Tools for Lower Installed Cost, Vibration Resistant |
| Contact Material | Copper |
| Strip Length | 1/4 in |
| UL 94 Flammability Rating | V-2, HB |
| Minimum Wire Size | 12 AWG |
| Barrel Style | Funnel Entry |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Product Type | Disconnect |
| Minimum Wire Size (AWG) | #12 |
| Tab Size (In.) | 0.25 x 0.032 |
| Overall Thickness (mm) | 8.1 |
| Overall Width (mm) | 6.4 |
| Overall Length (mm) | 26.2 |
| Wire Strip Length (mm) | 7.1 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Voltage (V) | 600 |
| Insulation Diameter (mm) | 5.8 |
| Tongue Angle | Straight |
| Overall Thickness (In.) | 0.03 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Base Material | Copper |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Flammability Rating | UL94-HB |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Operating Temperature (°C) | 105 |
| Overall Length (In.) | 1.03 |
| Disconnect Type | Male Tab Disconnect |
| Maximum Copper Conductor Size (AWG) | #10 |
| Insulation Diameter (In.) | 0.23 |
| Tab Size (mm) | 6.3 x 0.8 |
| Maximum Wire Size (AWG) | #10 |
| Barrel Type | Standard |
| Maximum Operating Temperature (°F) | 221 |
| Overall Width (In.) | 1/4 |
| Finish/Coating | Nickel-Plated |
| Product Name | Terminal Connector |
| Product Color | Yellow |
| Product Material | Copper |
| Environmentally Friendly | Yes |
| Contact Plating | Nickel |
| Connector Details | 1 x (Quick Disconnect) |
| Packaging Type | Bottle |
| Sub Brand | Pan-Term® |
| Package Quantity | 50 |
