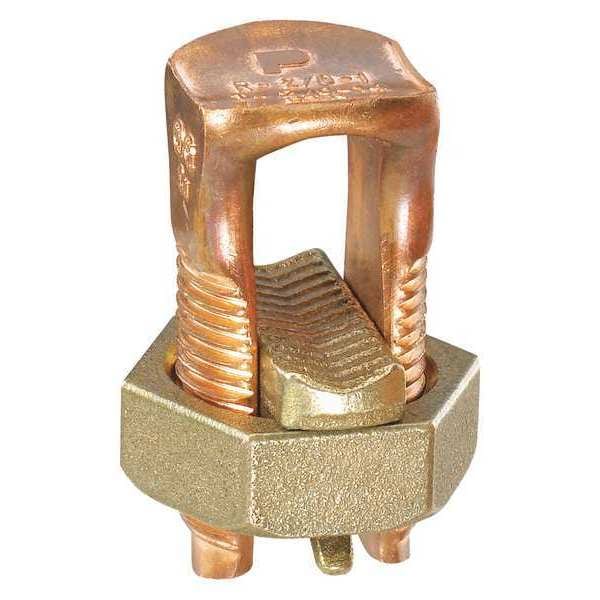

Conector mecánico, 1 AWG-3/0 AWG
| Item | Mechanical Connector,1 AWG-3/0 AWG |
|---|---|
| Product Type | Mechanical Connectors - Split Bolt |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG STR) | 8 |
| Overall Height (In.) | 2.07 |
| UL Temperature Rating (°C) | 90 |
| Maximum Copper Conductor Size (AWG STR) | 36,586 |
| Standards Met | cULus |
| Maximum Copper Conductor Size (AWG SOL) | 36,586 |
| Overall Height (mm) | 52.58 |
| Connection Type | Copper to Copper |
| Minimum Copper Conductor Size (AWG SOL) | 8 |
| Product Class | Split Bolts |
| Package Quantity | 1 |
