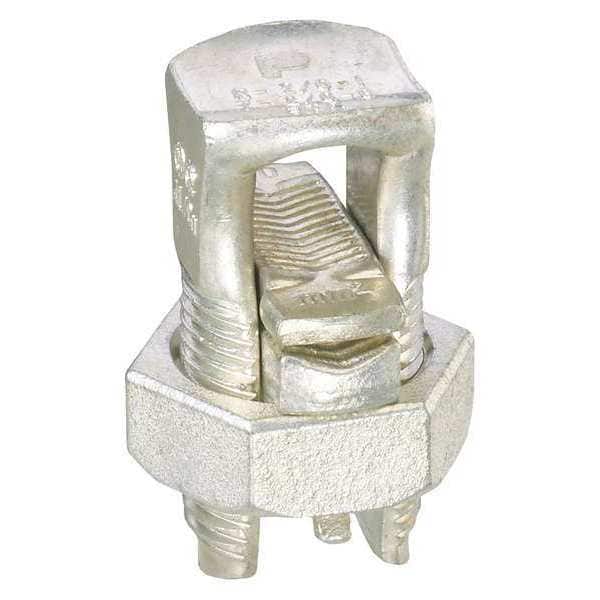

Conector mecánico, calibre 2 AWG-2/0 AWG
| Item | Mechanical Connector,2 AWG-2/0 AWG |
|---|---|
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C |
| Maximum Aluminum Conductor Size (AWG STR) | 36557 |
| Overall Height (In.) | 1.72 |
| Product Type | Mechanical Connectors - Split Bolt |
| Connection Type | Copper to Aluminum |
| Maximum Copper Conductor Size (AWG STR) | 36,557 |
| Overall Height (mm) | 43.68 |
| Minimum Copper Conductor Size (AWG SOL) | 2 |
| Base Material | Copper |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Product Class | Split Bolts |
| Package Quantity | 1 |
