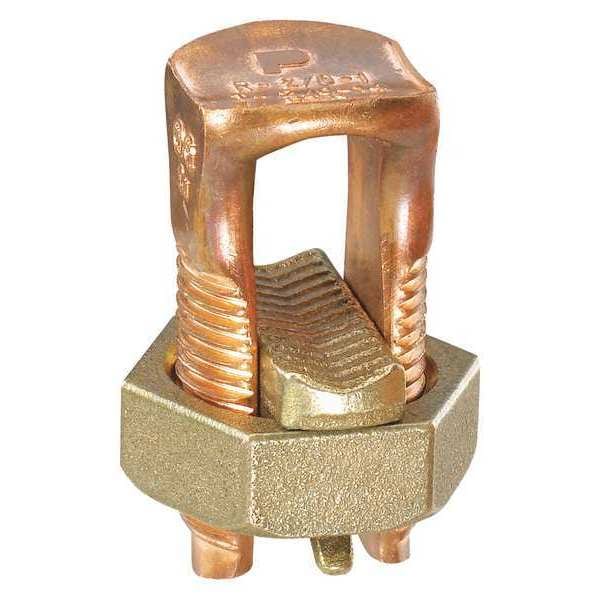

Conector mecánico, 6 AWG-2 AWG.
| Item | Mechanical Connector,6 AWG-2 AWG |
|---|---|
| Maximum Copper Conductor Size (AWG STR) | 2 |
| Overall Height (mm) | 31.24 |
| UL Temperature Rating (°C) | 90 |
| Standards Met | UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C |
| Connection Type | Copper to Copper |
| Base Material | Copper |
| Overall Height (In.) | 1.23 |
| Product Type | Mechanical Connectors - Split Bolt |
| Minimum Copper Conductor Size (AWG SOL) | 6 |
| Maximum Voltage (V) | 600 |
| Product Class | Split Bolts |
| Package Quantity | 1 |
