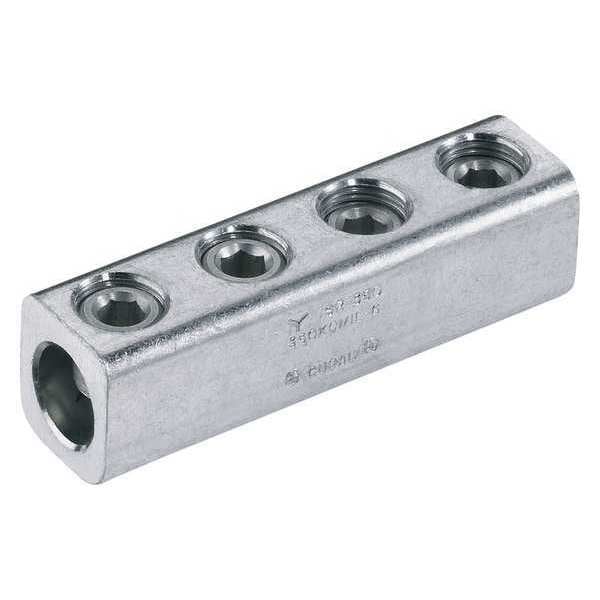

Mechanical Connector, 6 AWG-250 Kcmil
| Item | Mechanical Connector,6 AWG-250 Kcmil |
|---|---|
| Width | 1 in |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 28.7 |
| Standards Met | LISTED PER UL486B |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Overall Width (In.) | 1 |
| Base Material | Aluminum |
| Overall Width (mm) | 25.4 |
| Product Type | Connector, Reducer |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Hex Size (mm) | 7.9 |
| Overall Length (In.) | 3.94 |
| Note | SR-250-XY replaces SR-250-X |
| Overall Length (mm) | 100.1 |
| Product Class | Wire Termination |
| Height | 1.1 in |
| Overall Length | 3.94 in |
| Package Quantity | 1 |
