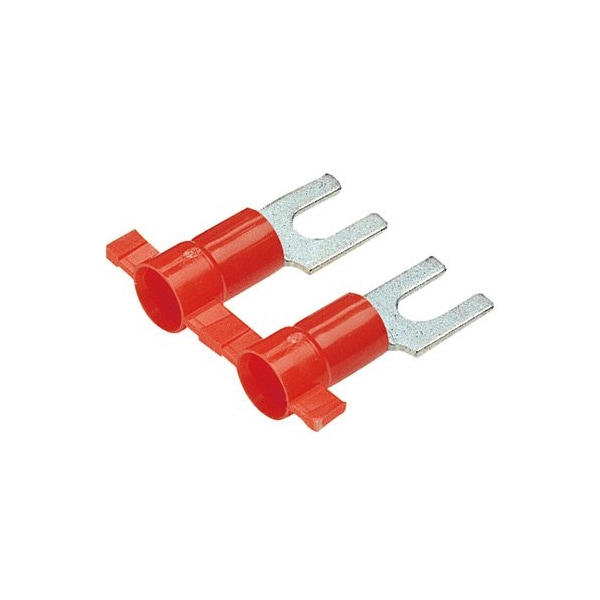

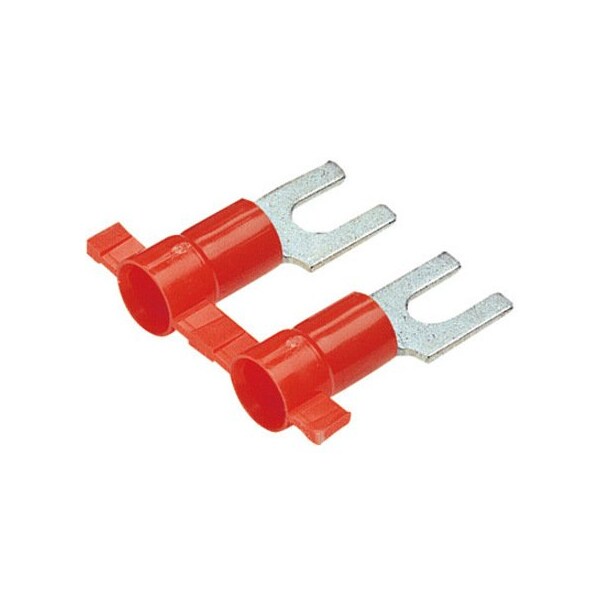

Terminal de horquilla métrico, aislado con vinilo, 0.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | M3 |
| Insulation Color | Red |
| Item | Fork Terminal |
| Connection Material | Copper |
| Seam | Butted |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.23 in |
| Terminal Type | Standard |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Overall Length | 0.78 in |
| Max. Temp. | 221 deg F |
| Features | Funnel Entry |
| Width | 0.2 in |
| Finish | Tin-Plated |
| Length | 0.8 in |
| Insulation Dia | 0.15 in |
| Insulation Material | Vinyl |
| Product Name | Terminal Connector |
| Product Color | Red |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Fork Terminal) |
| Connector Plating | Tin |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Red |
| Barrel Type | Funnel |
| Product Class | Wire Termination |
| Package Quantity | 3000 |
