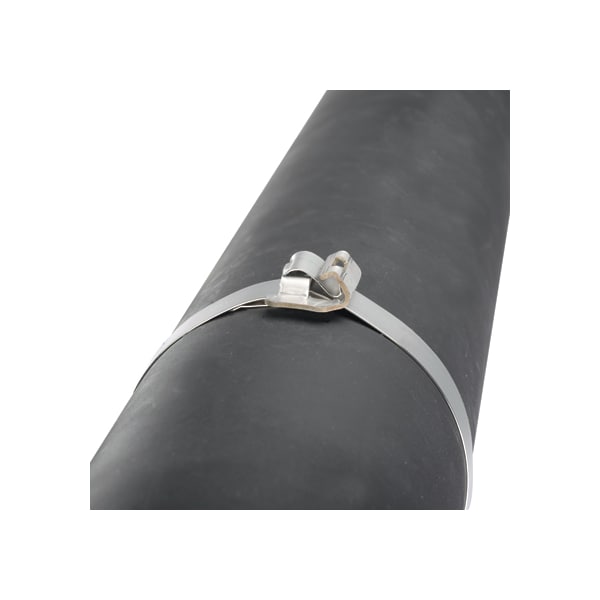

MS Strapping, 316 SS, .75" (19.0mm) Wd,
| Color | Natural |
|---|---|
| Material | 316 Stainless Steel |
| Width | 3/4 in |
| Application | Short-Circuit Protection |
| For Use With | BT75SDT, BT2HTI |
| Overall Length | 44.7 in |
| Minimum Installation Temperature (°C) | -60 |
| Overall Length (In.) | 44.7 |
| Maximum Operating Temperature (°F) | 1 |
| Minimum Loop Tensile Strength (N) | 10.656 |
| Maximum Bundle Diameter (In.) | 12 |
| Minimum Installation Temperature (°F) | -76 |
| Overall Length (mm) | 1.135 |
| Minimum Operating Temperature (°F) | -76 |
| Maximum Installation Temperature (°C) | 538 |
| Maximum Operating Temperature (°C) | 538 |
| Minimum Operating Temperature (°C) | -60 |
| Overall Thickness (In.) | 0.03 |
| Minimum Loop Tensile Strength (lb) | 2.4 |
| Overall Thickness (mm) | 0.76 |
| Maximum Installation Temperature (°F) | 1 |
| Maximum Bundle Diameter (mm) | 305 |
| Product Type | Stainless Steel Buckle Strap Cable Cleat |
| Environment | Indoor, Outdoor, Harsh |
| Overall Width (mm) | 19 |
| Overall Width (In.) | 3/4 |
| Product Class | Wire Routing, Management & Protection |
| Min Operating Temperature | -60 degrees Celsius |
| Max Operating Temperature | 538 degrees Celsius |
| Package Quantity | 25 |
