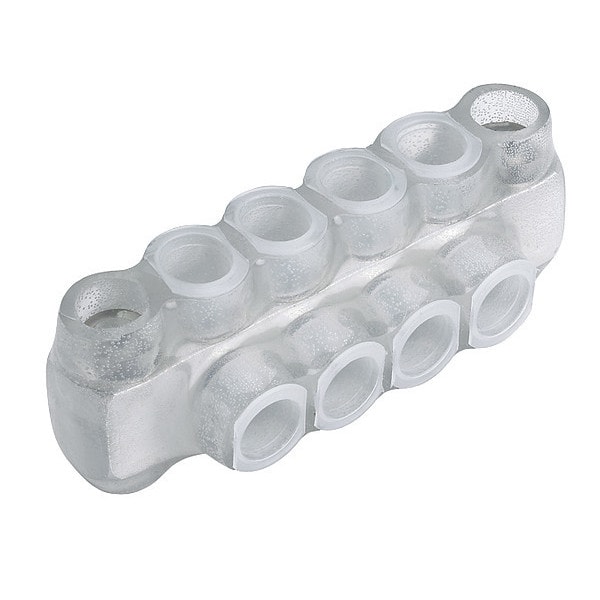

Conector múltiple, doble cara, transparente, 4 pines, 600k, #6a
| Width | 3 in |
|---|---|
| Length | 5.3 in |
| Item | Multi Conn,Dbl-Sd,Clr,4pt,600k,#6a |
| Height | 2.8 in |
| Overall Length | 5.28 in |
| Standards Met | UL Listed and CSA Certified for use up to 600 V |
| Base Material | Aluminum |
| Overall Length (mm) | 134.1 |
| Overall Width (In.) | 3 |
| Overall Length (In.) | 5.28 |
| Product Type | Mechanical Connectors |
| Overall Height (mm) | 69.9 |
| Number of Ports | 4 |
| Application | Aluminum or Copper Code Conductors |
| Maximum Copper Conductor Size (kcmil) | 600 |
| Overall Height (In.) | 2.8 |
| Maximum Aluminum Conductor Size (kcmil) | 600 |
| Maximum Voltage (V) | 600 |
| Hex Size (In.) | 44,993 |
| Overall Width (mm) | 76.2 |
| Minimum Aluminum Conductor Size (AWG) | 6 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Insulation Material | Clear PVC |
| UL Temperature Rating (°C) | 90 |
| Hex Size (mm) | 9.53 |
| Product Material | Polyvinyl Chloride |
| Product Line | Pan-Lug |
| Connector Details | Multi-tap Terminal |
| Features | Double Sided |
| Product Name | Terminal Connector |
| Product Color | Clear |
| Product Class | Wire Termination |
| Package Quantity | 1 |
