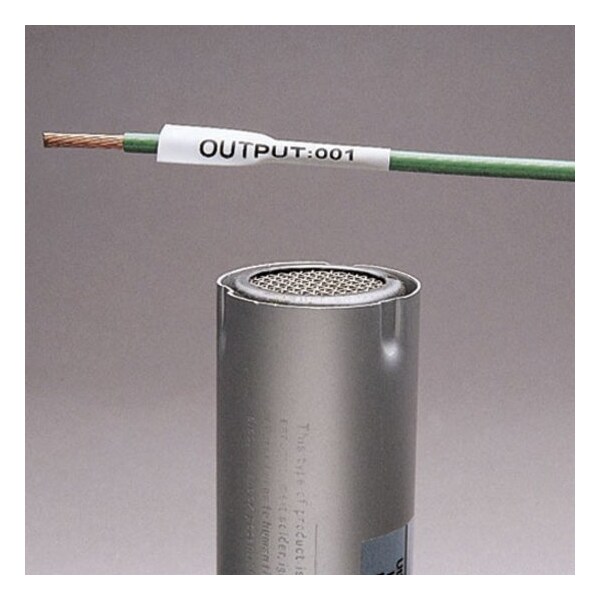

P1 Heat Shrink Cass, 1"x.25"x.13" dia., Yl
| Item | P1 Heat Shrink Cass,1"x.25"x.13" dia.,Yl |
|---|---|
| Material | Polyolefin |
| Color | Yellow |
| Features | Lead-free |
| Overall Width (In.) | 1/4 |
| Overall Length | 6.1 m |
| Shape | Rectangle |
| Minimum Cable Diameter (mm) | 1 |
| Label Width (In.) | 1 |
| Maximum Cable Diameter (mm) | 3.3 |
| Label Height (mm) | 6.4 |
| Minimum Operating Temperature (°F) | -67 |
| Minimum Cable Diameter (In.) | 0.04 |
| Resistance Properties | Military Grade |
| Compatible Wire Gauge (AWG) | 22-18 |
| Maximum Operating Temperature (°F) | 275 |
| Label Height (In.) | 0.25 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Labels | 100 |
| Overall Width (mm) | 6.4 |
| Label Application | Cable & Wire Marking |
| Label Width (mm) | 25.4 |
| Maximum Cable Diameter (In.) | 0.13 |
| Product Type | Heat Shrink Label |
| Maximum Operating Temperature (°C) | 135 |
| Product Material | Polyolefin |
| Label Width | 1/4 in |
| Label Length | 1 in |
| Product Name | Cable Label, Wire |
| Label Diameter | 1/8 in |
| Product Color | Yellow |
| Product Class | Signs, Labels & Identification |
| Package Quantity | 1 |
