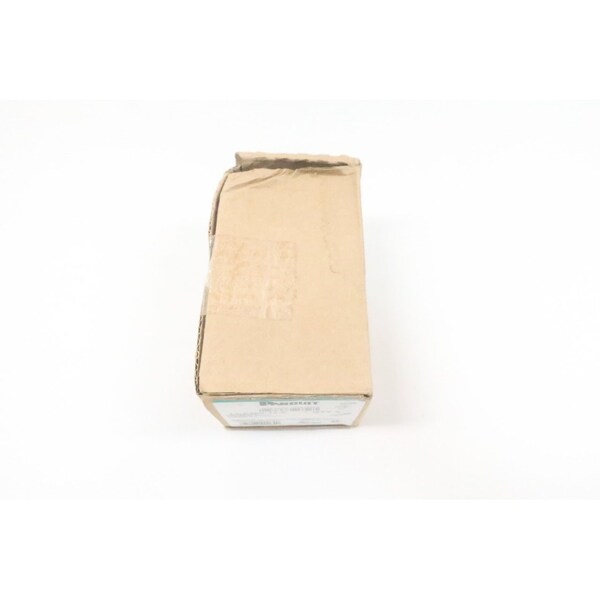

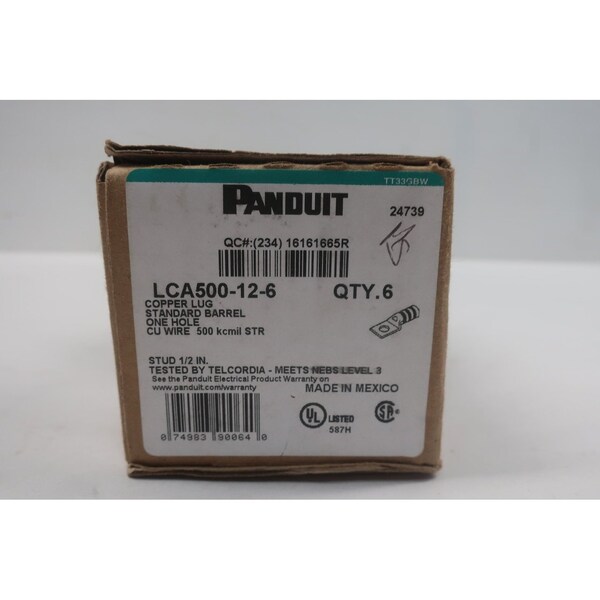

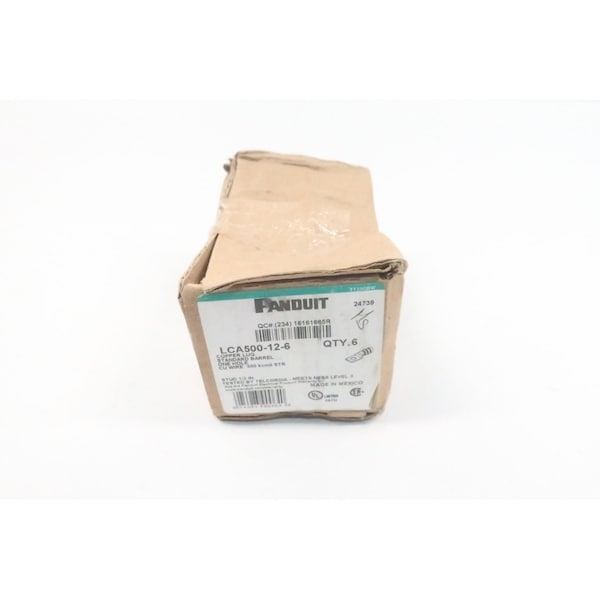

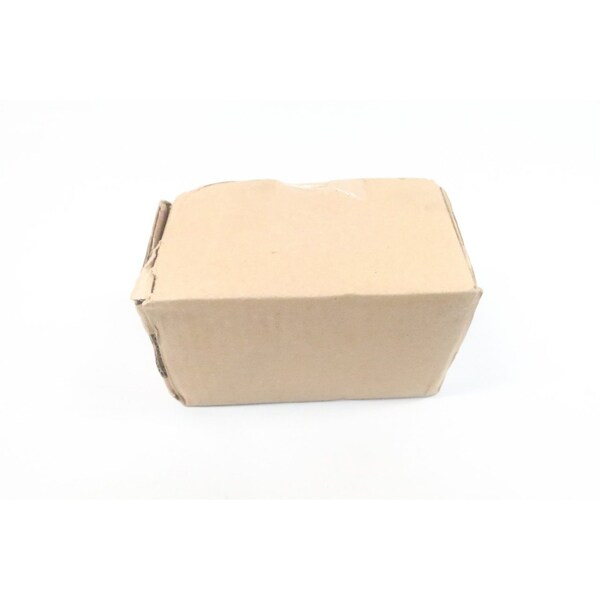

Panduit Lca500-12-6 One Hole Copper Compression Lug Connector, 6PK
| Color Code | Brown |
|---|---|
| Inside Diameter (mm) | 21.33 |
| Base Material | Copper |
| Wire Strip Length (mm) | 46 |
| Product Type | Copper Compression Connectors - Lugs |
| Overall Length (mm) | 90.2 |
| Tongue Thickness (In.) | 0.22 |
| UL Temperature Rating (°C) | 90 |
| Tongue Type | Standard |
| Wire Strip Length (In.) | 42,382 |
| Tongue Angle | Straight |
| Inside Diameter (In.) | 0.84 |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Overall Length (In.) | 3.55 |
| Outer Diameter (In.) | 1.06 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Barrel Length (In.) | 1-3/4 |
| Tongue Width (In.) | 1.54 |
| Stud Hole Size (mm) | 12.7 |
| Burndy Die Index Number | 20 |
| Outer Diameter (mm) | 26.92 |
| Barrel Length (mm) | 44.5 |
| Tongue Thickness (mm) | 5.6 |
| T & B Die Index Number | 20 |
| Copper Code Conductor Size (kcmil) | 500 |
| Stud Hole Size (In.) | 1 to 2 |
| Finish/Coating | Tin-Plated |
| Panduit Die Index Number | P87 |
| Tongue Width (mm) | 39.1 |
| Maximum Voltage (kV) | 35 |
| Lug Type | 1 Stud Hole Lug |
| Package Quantity | 6 |
