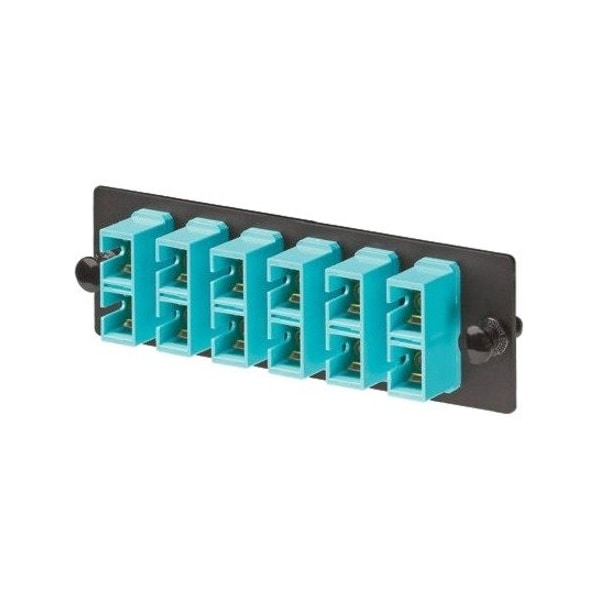

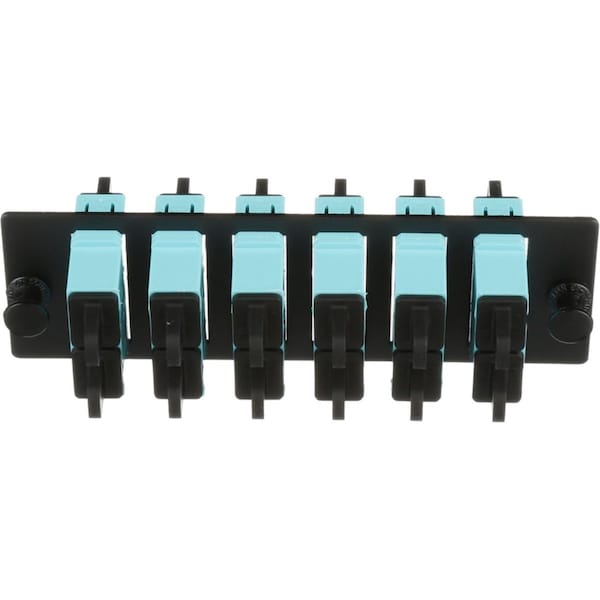

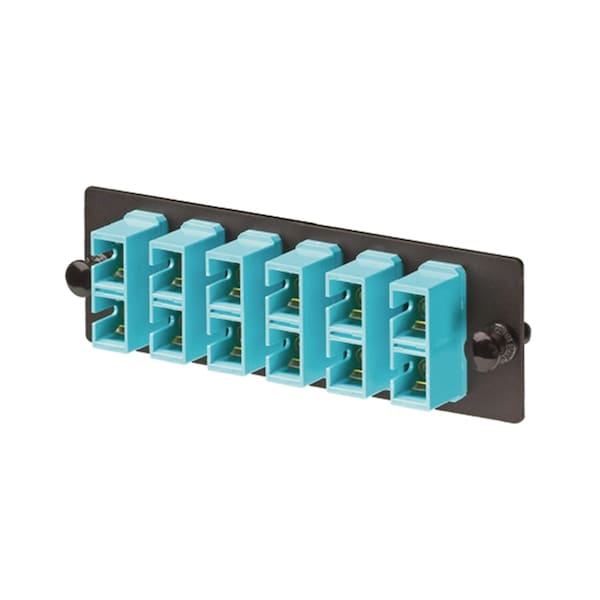

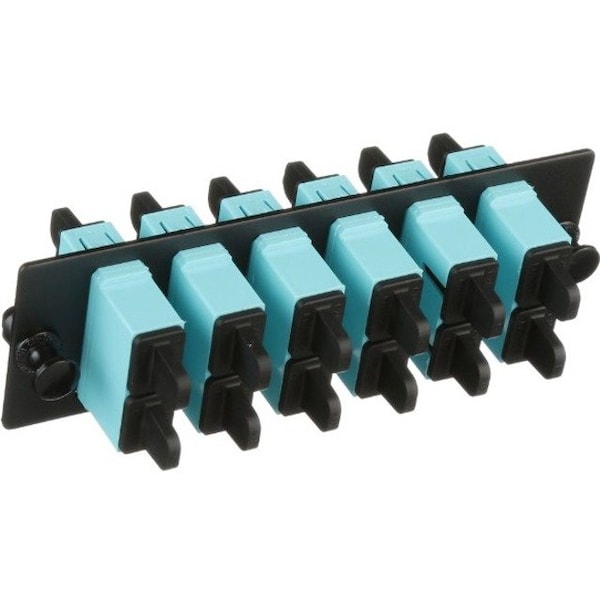

Port Panel, 1.4 in. H x 4.3 in. W x 1.9 in. L, Zirconia Ceramic
| Item | Port Panel |
|---|---|
| Dimension | 1.4 in. H x 4.3 in. W x 1.9 in. L |
| Height | 1.4 in |
| Width | 4.3 in |
| Material | Zirconia Ceramic |
| Color | Black |
| Length | 1.9 in |
| Application | Used with Opticom® Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom ® Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas |
| Depth | 1.9 in |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Network Patch Panel |
| Overall Height (In.) | 1.39 |
| Connection Type | SC |
| Overall Depth (mm) | 48.7 |
| Adapter Color | Aqua |
| Overall Depth (In.) | 1.92 |
| Overall Width (mm) | 109.1 |
| Overall Width (In.) | 4.3 |
| Fiber Type | OM3, OM4 |
| Number of Ports | 6 |
| Overall Height (mm) | 35.2 |
| SC Port Type | Duplex |
| Product Line | Opticom |
| Product Material | Ceramic, Zirconia |
| Product Name | Front Loading Adapter Panel |
| Product Color | Black, Aqua |
| Total Number of Ports | 6 |
| Certifications & Standards | TIA/EIA-568-C.3 |
| Number of SC Ports | 6 |
| Fiber Count | 6 |
| Connector Type | SC DUPLEX |
| Package Quantity | 1 |
