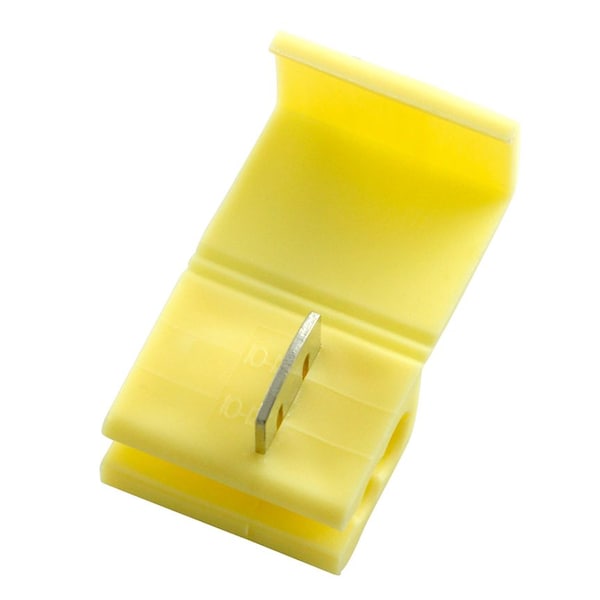

Unión rápida, 12, 10 AWG, paquete de 25.
| Item | Quick Splice,12,10 Awg,PK25 |
|---|---|
| Color | Yellow |
| Color Code | Yellow |
| Overall Length | 0.81 in |
| Height | 0.66 in |
| Width | 0.6 in |
| Product Type | Quick Splice |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Overall Height (In.) | 0.66 |
| CSA Temperature Rating (°C) | 105 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Maximum Voltage (kV) | 0.6 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Copper Conductor Size (AWG) | #12 - #10 |
| Standards Met | cULus |
| Minimum Copper Conductor Size (AWG) | #12 |
| Finish/Coating | Tin-Plated |
| Overall Width (In.) | 0.6 |
| Overall Length (In.) | 0.81 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Product Class | Wire Termination |
| Package Quantity | 25 |
