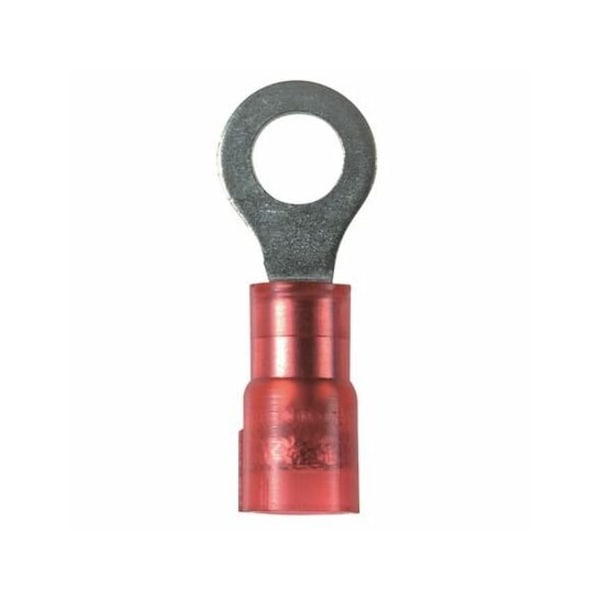

Ring, Funnel, Nylon, 22-18 Awg, #6, PK100
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Red |
| Item | Ring,Funnel,Nylon,22-18 Awg,#6,PK100 |
| Seam | Grip Sleeved |
| Terminal Type | Ring Tongue |
| Max. Voltage | 1,000 V |
| Features | Flame Retardant |
| Max. Temp. | 221 deg F |
| Standards | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-102) |
| Overall Length | 0.77 in |
| Connection Material | Copper |
| Width | 0.3 in |
| Length | 0.8 in |
| Finish | Tinned |
| Tongue Width - Wire Connector | 1/4 in |
| Insulation Dia | 0.14 in |
| Product Color | Red |
| Product Material | Copper |
| Connector Plating | Tin |
| Insulation Material | Nylon, Metal |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Ring Terminals |
| Color Coding | Red |
| Barrel Type | Insulation Grip Sleeve |
| Package Quantity | 100 |
