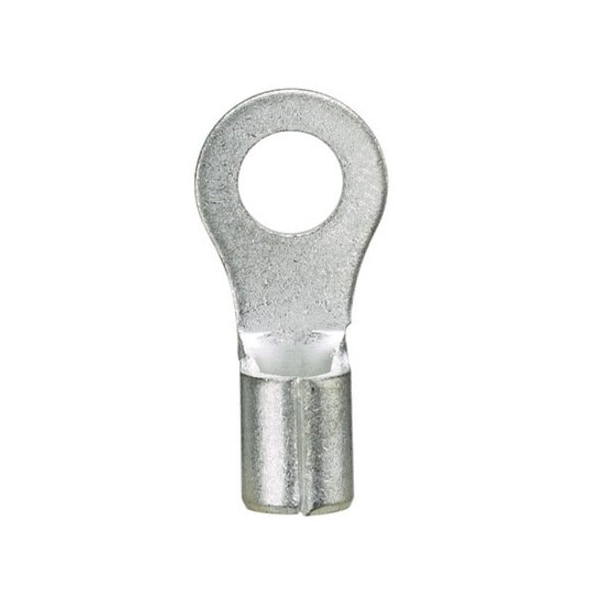

Ring, Non-Ins, 12-10 Awg, 5/16" Stud, PK500
| Wire Range | 14 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 5/16 in |
| Item | Ring,Non-Ins,12-10 Awg,5/16" Stud,PK500 |
| Terminal Type | Ring Tongue |
| Max. Voltage | 2,000 V |
| Barrel Inside Dia. | 0.13 in |
| Overall Length | 0.95 in |
| Connection Material | Copper |
| Standards | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-106) |
| Max. Temp. | 302 deg F |
| Seam | Standard, Brazed |
| Features | Brazed Seam |
| Tongue Width - Wire Connector | 0.52 in |
| Width | 1/2 in |
| Length | 1 in |
| Finish | Tin-Plated |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Product Class | Ring Terminals |
| Max Operating Temperature | 150 degrees celsius |
| Barrel Type | Beveled |
| Color Coding | Silver |
| Package Quantity | 500 |
