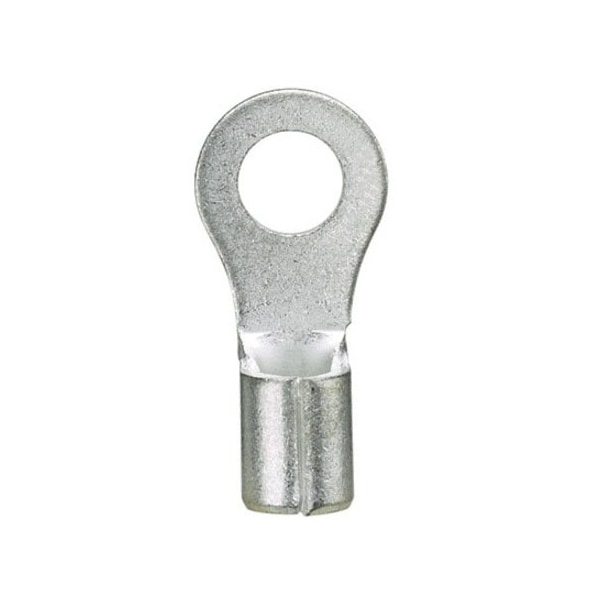

Anillo, Sin aislamiento, 22-16 Awg, Espárrago de 3/8", Paquete de 100
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 3/8 in |
| Item | Ring,Non-Ins,22-16 Awg,3/8" Stud,PK100 |
| Overall Length | 1 in |
| Features | Brazed Seam |
| Terminal Type | Ring Tongue |
| Connection Material | Copper |
| Max. Temp. | 302 deg F |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 |
| Seam | Standard, Brazed |
| Max. Voltage | 2,000 V |
| Barrel Inside Dia. | 0.07 in |
| Tongue Width - Wire Connector | 0.53 in |
| Length | 1 in |
| Finish | Tin-Plated |
| Width | 1/2 in |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Product Class | Wire Termination |
| Max Operating Temperature | 150 degrees celsius |
| Color Coding | Silver |
| Outside Diameter Inches | 0.53 in |
| Package Quantity | 100 |
