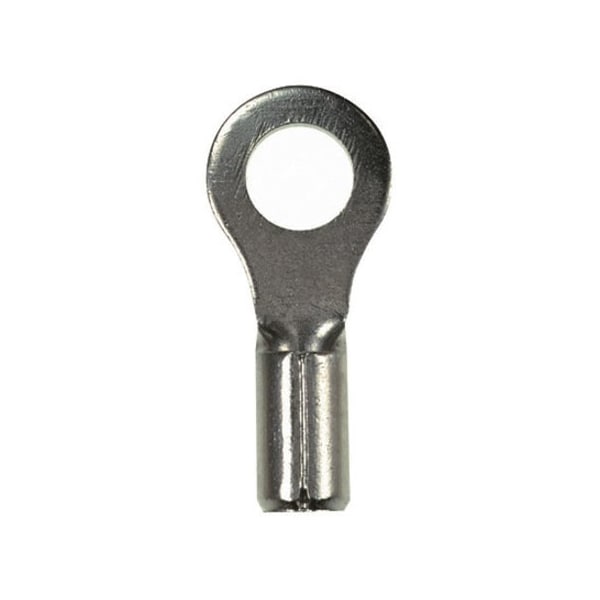

Anillo, no aislado, calibre 22-16, terminal #8, paquete de 1000.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Item | Ring,Non Insul,22-16 Awg,#8 Stud,PK1000 |
| Terminal Type | Ring Tongue |
| Seam | Standard, Brazed |
| Connection Material | Copper |
| Barrel Inside Dia. | 0.07 in |
| Overall Length | 0.71 in |
| Features | Brazed Seam |
| Standards | cULus Listed 587H E52164 |
| Max. Voltage | 2,000 V |
| Max. Temp. | 650 deg F |
| Tongue Width - Wire Connector | 0.31 in |
| Width | 0.3 in |
| Finish | Tin-Plated |
| Length | 0.7 in |
| Connector Plating | Nickel |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Outside Diameter Inches | 0.31 in |
| Color Coding | Silver |
| Max Operating Temperature | 343 degrees celsius |
| Package Quantity | 100 |
