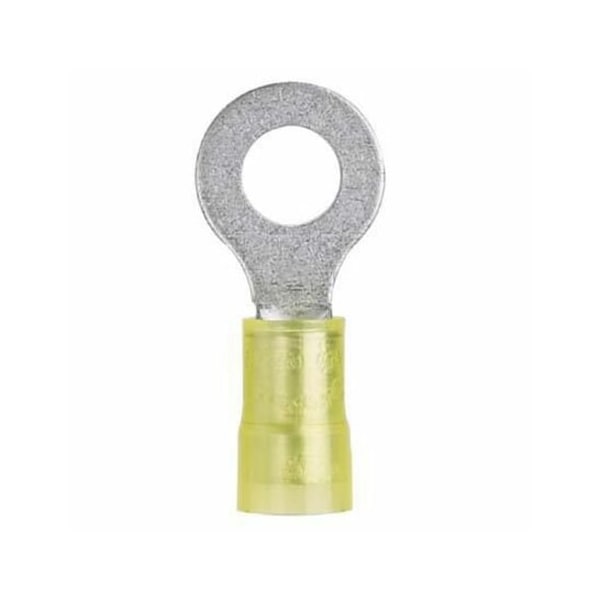

Anillo, Aislante de Nylon, Calibre 12-10, Perno de 3/8", Paquete de 500
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 3/8 in |
| Insulation Color | Yellow |
| Item | Ring,Nylon Insul,12-10Awg,3/8"Stud,PK500 |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Standards | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-114) |
| Seam | Grip Sleeved |
| Overall Length | 1.29 in |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.58 in |
| Length | 1.3 in |
| Finish | Tin-Plated |
| Width | 0.6 in |
| Insulation Dia | 0.23 in |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Product Color | Yellow |
| Insulation Material | Nylon, Metal |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Barrel Type | Insulation Grip Sleeve |
| Product Class | Wire Termination |
| Color Coding | Yellow |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 500 |
