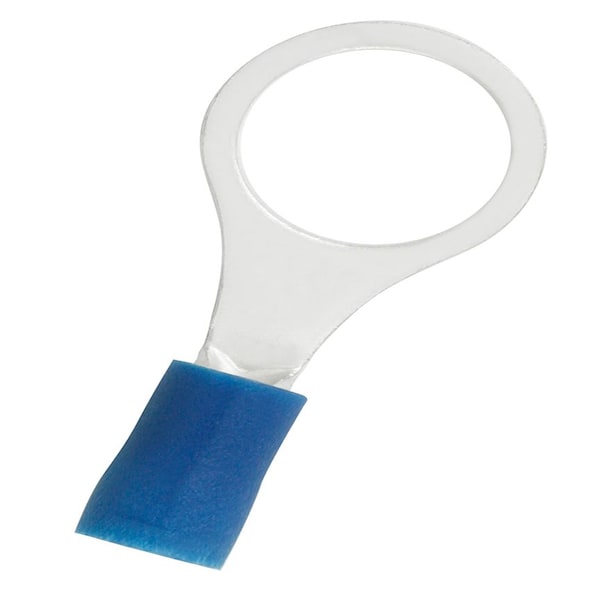

Ring Term, 16, 14 Awg, PK25
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 3/8 in |
| Insulation Color | Blue |
| Item | Ring Term,16,14 Awg,PK25 |
| Standards | UL Listed 587H E52164; CSA Certified LR31213 |
| Terminal Type | Ring Tongue |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Overall Length | 1.2 in |
| Seam | Standard, Butted |
| Connection Material | Copper |
| Width | 0.54 in |
| Finish | Tin-Plated |
| Tongue Width - Wire Connector | 0.54 in |
| Insulation Dia | 0.17 in |
| Product Class | Wire Termination |
| Color Coding | Blue |
| Barrel Type | Standard |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 25 |
