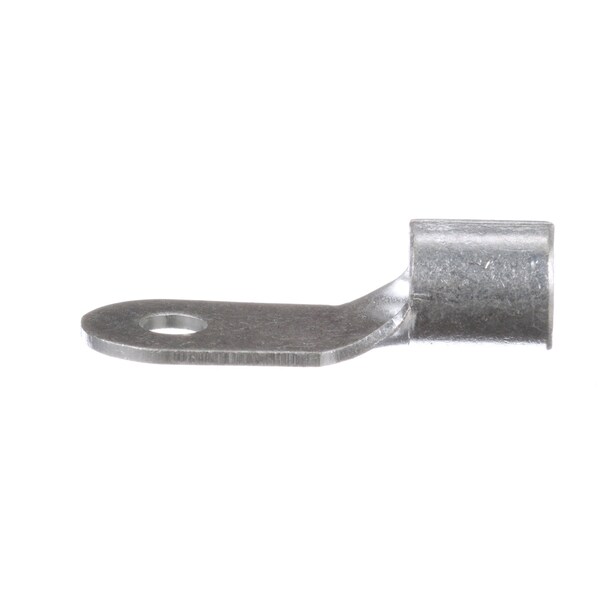

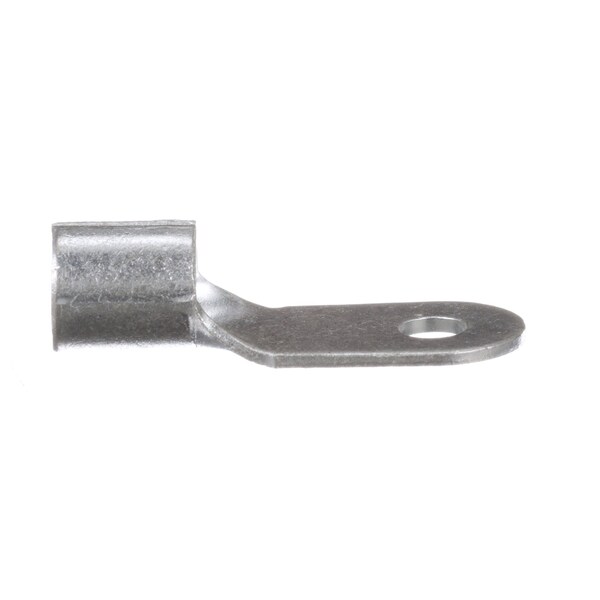

Terminal de anillo, cable grande, sin aislante, calibre 4 AWG, tornillo #10, P4-10R-T, paquete de 200
| Wire Range | 4 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Connection Material | Copper |
| Terminal Type | Ring Tongue |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Barrel Inside Dia. | 0.29 in |
| Max. Voltage | 2,000 V |
| Seam | Standard, Brazed |
| Tongue Width - Wire Connector | 0.55 in |
| Overall Length | 1.4 in |
| Features | Brazed Seam |
| Max. Temp. | 302 deg F |
| Item | Ring Terminal |
| Finish | Tin-Plated |
| Length | 1.4 in |
| Width | 0.6 in |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Ring Terminals |
| Color Coding | Metallic |
| Package Quantity | 200 |
